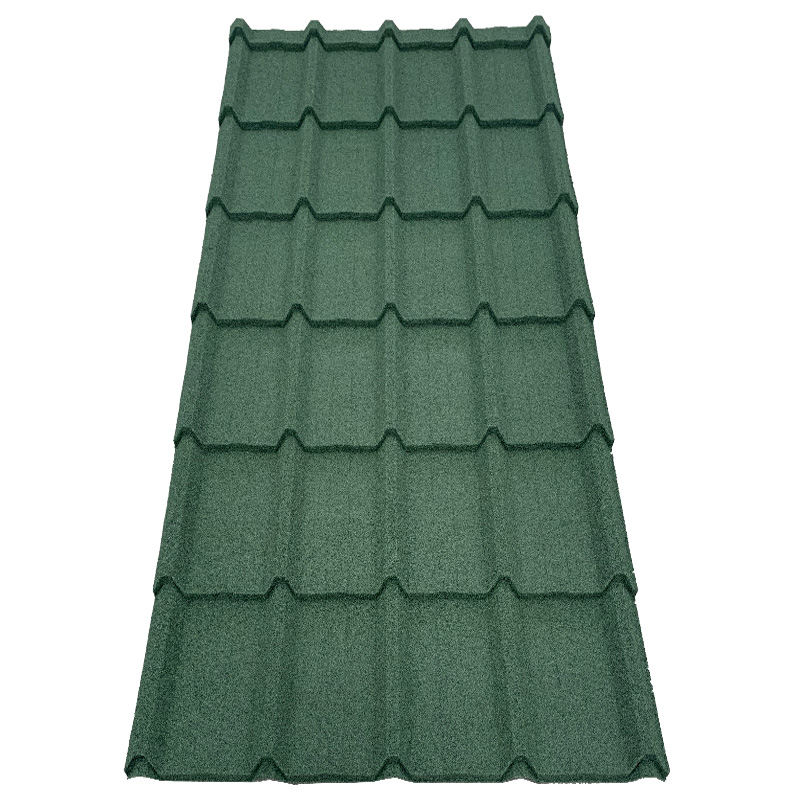

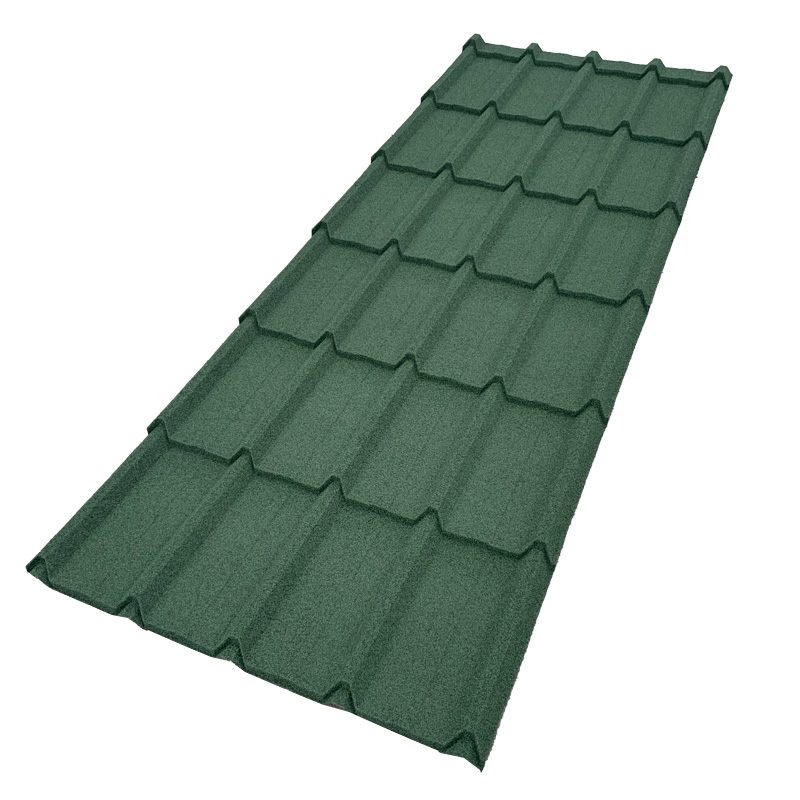

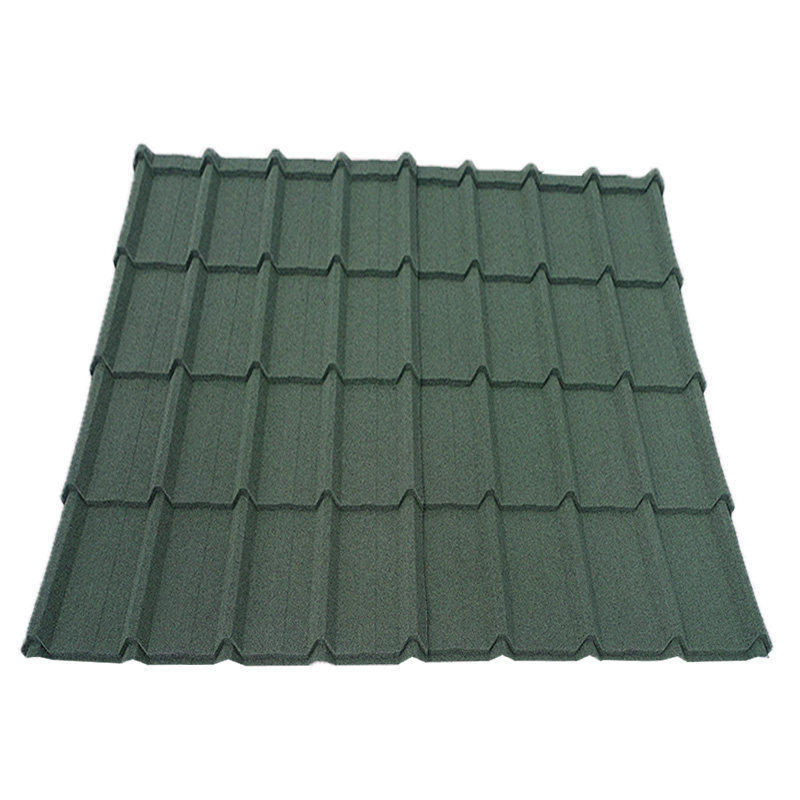

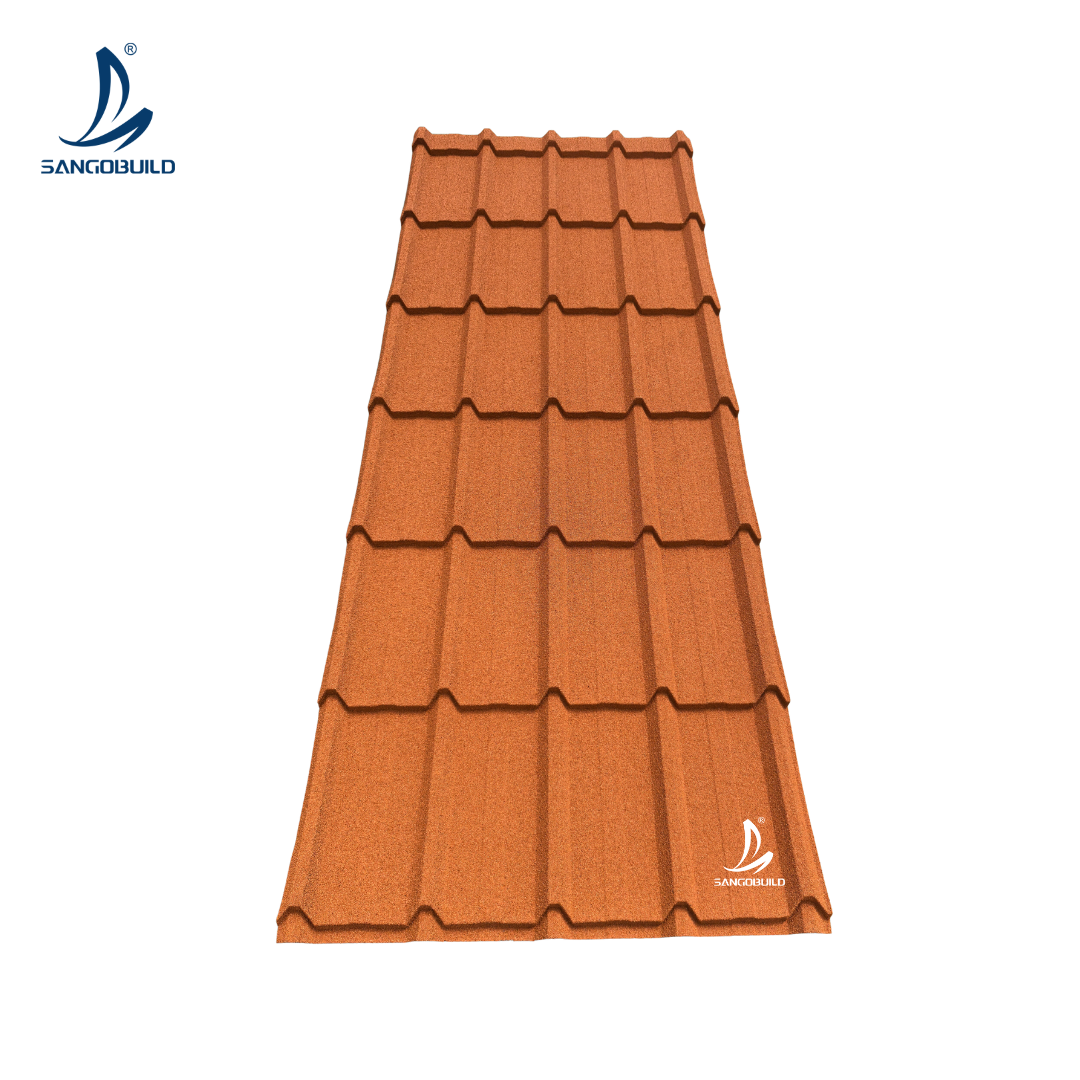

Long Span Corrugate Tile

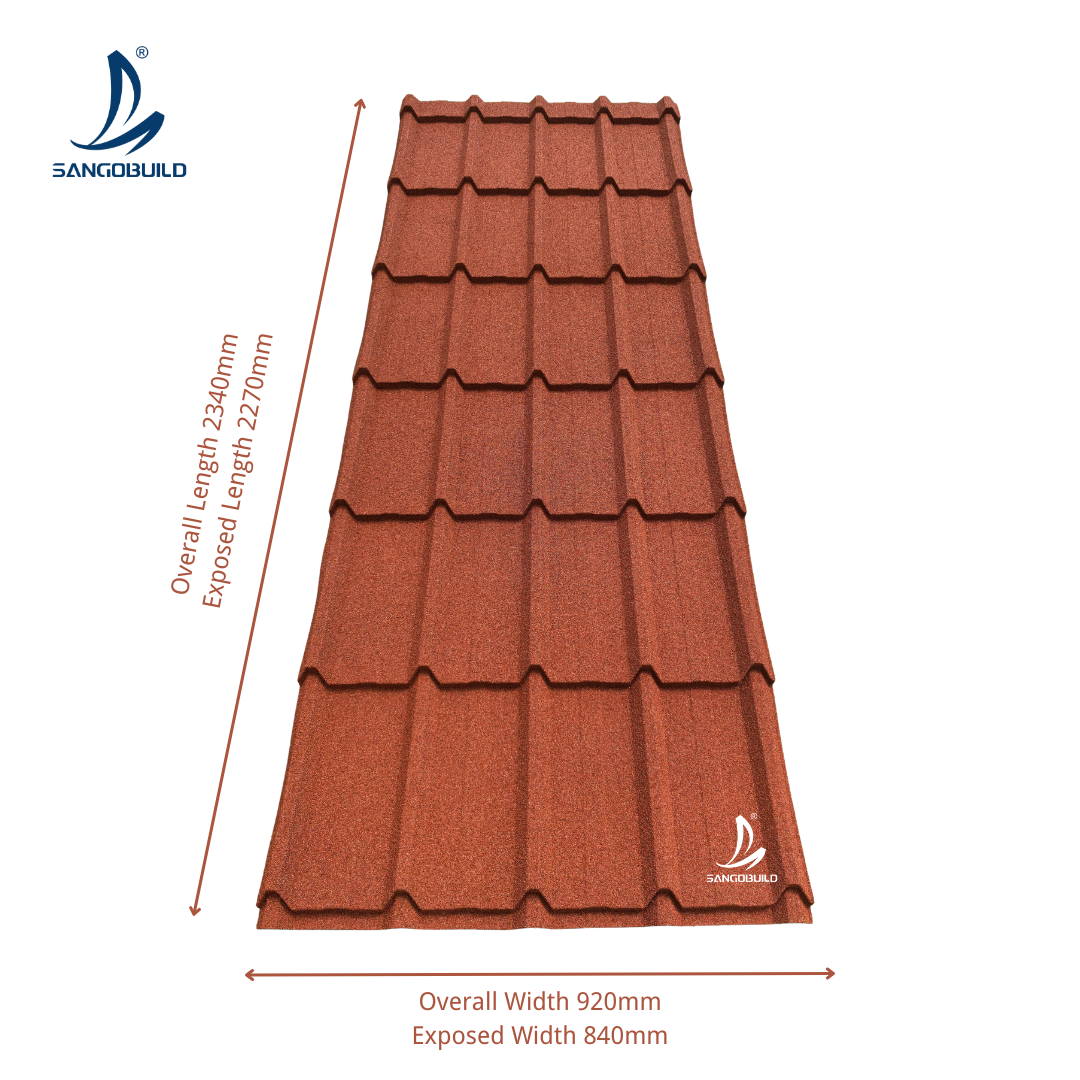

Size:920x2340mm

Length:1215mm, 1590mm, 1965mm, 2340mm(Customizable )

Effective Size:840x2250mm

Thickness:0.35-0.55mm

Weight:10.5±0.5 kg/pc

Coverage Area:1.89sq.m

Warranty:50 years

Product Description

Product Name
Long Span Corrugate Tile
Material
Galvalume steel(Aluminum Zinc plated steel sheet=PPGL), Natural stone chip, Acrylic resin glue
Color
Black, Red, Blue, Green, Customized
Tile Size
920x2340mm
Effective Size
840x2250mm
Thickness
0.35mm,0.40mm,0.45mm,0.50mm,0.55mm
Weight
10.5±0.5 kg/pc
Coverage Area
1.89sq.m./pc
Certificate
SONCAP,COC,UL,ISO9001
Used
Residential, Commercial construction roof


The Advantage of stone roofing tile

1.Excellent durability and waterproof

High-quality aluminum zinc plated steel sheet and natural stone chip coating with acrylic resin glue make stone coated roof tile to superior corrosion resistance and waterproof. The warranty could be last up to 50 years.


2.Lightweight and easy to install

The weight of stone coated metal roof tile is only 1/6 of the traditional tile, only 5.20-6.50kgs/sq.m.It is easy to transport, store and install.


3.Economic

Because it is lightweight but big size, so it usually just takes 3-5days for 2 workers to finish all the installation for a common residence and related charge of shipment and installation be reduced sharply.


4.Noise reduction and heat insulation

The stone chips could reduce the noise when raining or hailing, it also could insulate from heat when exposing to extremely UV and keep warm in Winter.

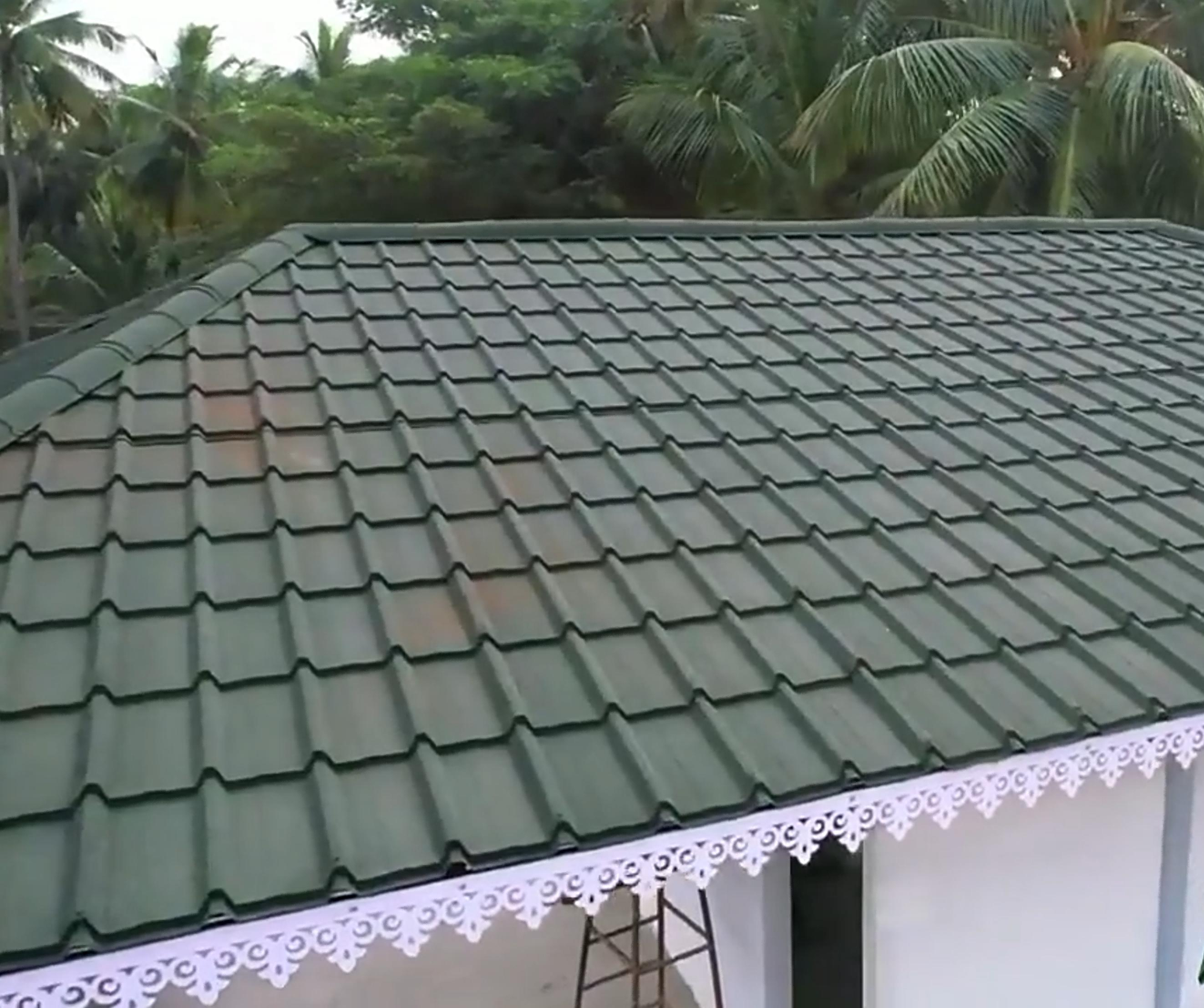

Application

Long Span Corrugate Tile

Long Span Corrugate Tile

Products Color

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

  • Long Span Corrugate Tile

Installation
