Home > Products > Solar Roof Tile

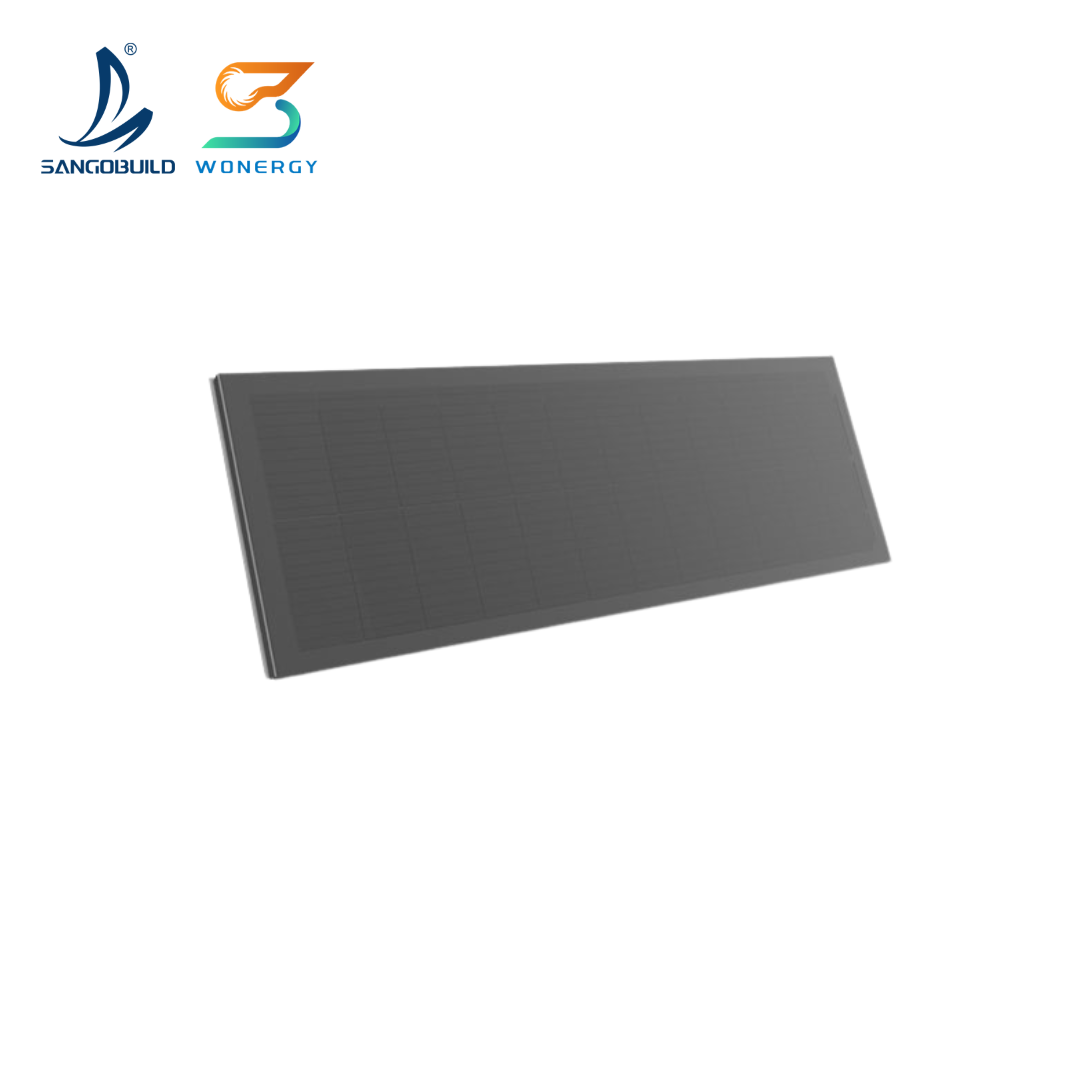

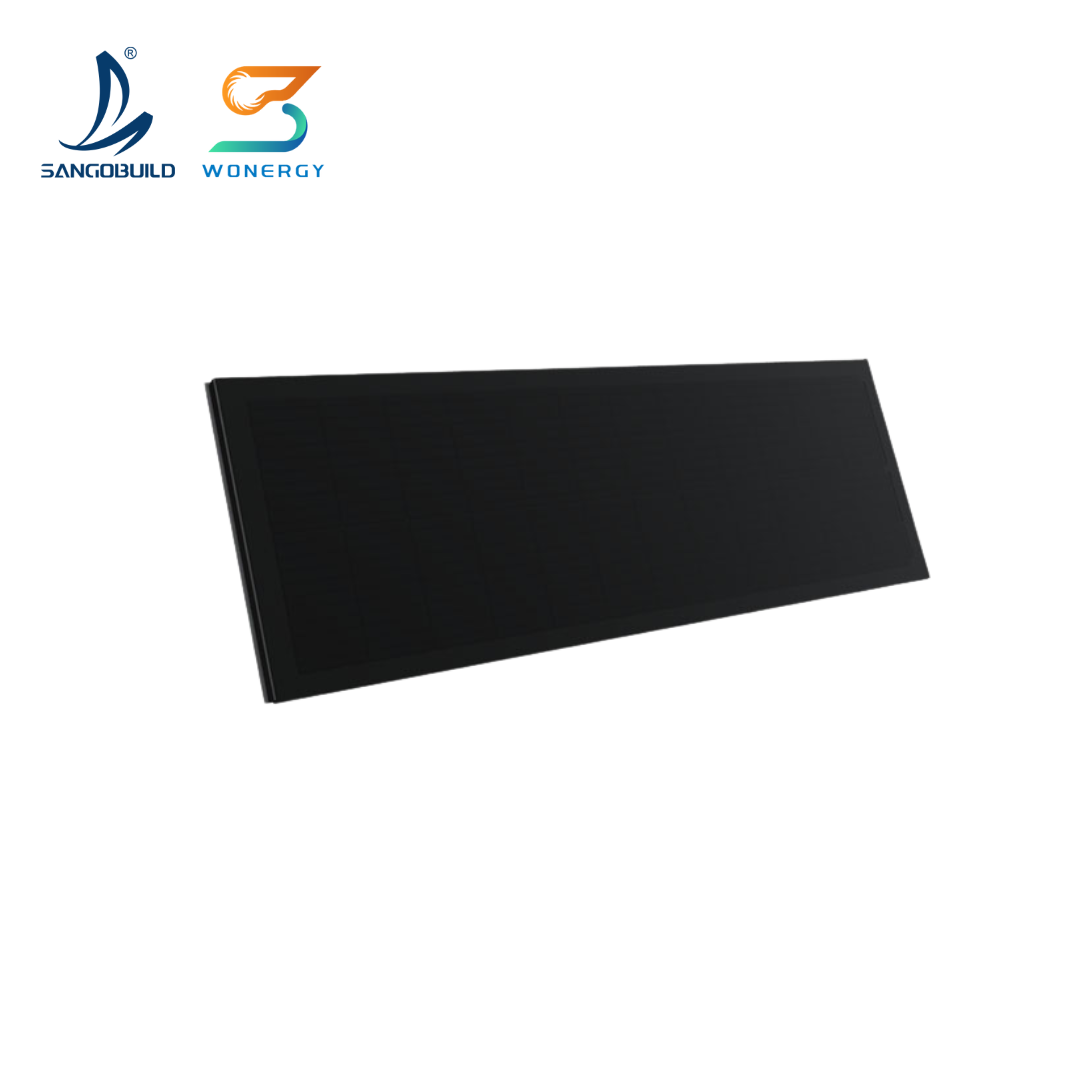

Xiho Type

Size: 1225*453mm

Effective Size: 1215*400mm

Power Output: 100w (Black)

Weight: 8.5 kg/pc

Glass (material/thickness): low iron tempered glass 3.2mm/2mm

Solar Cell Type: 182*91mm (2*14)

Junction box: ≥ IP67

Cable type: 900mm / 4mm²

Warranty: more than 30 years


Product Description

XIHO Solar Roof Tiles – BIPV That Blends Beauty, Safety, and Performance

XIHO is not just a solar panel disguised as a tile – it is a true building‑integrated photovoltaic (BIPV) solution. Designed to replace traditional roof tiles while generating clean energy. It transforms ordinary rooftops into efficient power plants without compromising architectural aesthetics. Ideal for urban renewal projects, beautiful countryside initiatives, and high‑end residential or commercial buildings, XIHO delivers green, zero‑carbon energy with a service life of over 30 years – matching the life of the building itself.


Product Highlights:

  • Lightweight – Only 8.5 kg per tile, reducing roof load and making installation easy.

  • Triple Waterproofing – Three layers of protection keep the roof dry and leak‑free.

  • Class A Fire Rating – Highest fire safety standard.

  • Noise Reduction & Ventilation – Quieter indoors plus heat dissipation for better comfort.

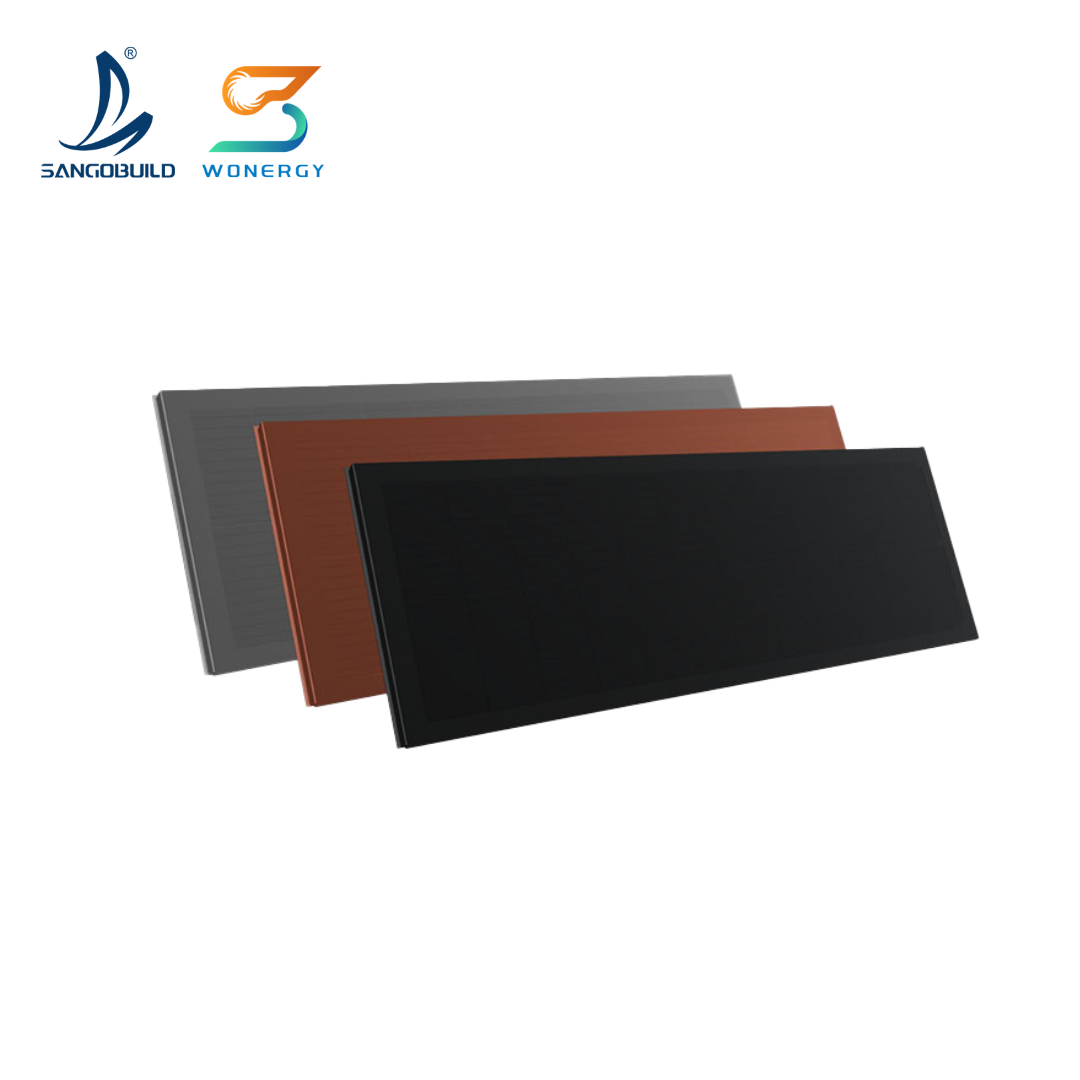

  • Customizable Colors – Three colors available to match any architectural style.

  • High Efficiency – 100W per tile, 19.4% module efficiency (monocrystalline silicon).


Sol Type


Solar Roof Tiles Sol Type Manufacturer

MODEL
Xiho Tile
SIZE
1225*453*23mm
Weight8.5kg
GLASS(Materials/Thickness)Low-iron tempered glass 3.2mm/2mm
Solar Cell Type182*91mm (2*14)
Junction Box≥IP67
Cable Type900mm / 4mm²
Cable JoinerMC4
Lifespan>30 years
Power output100W
Temperature Range-40°C to +85°C
Fire RatingClassA

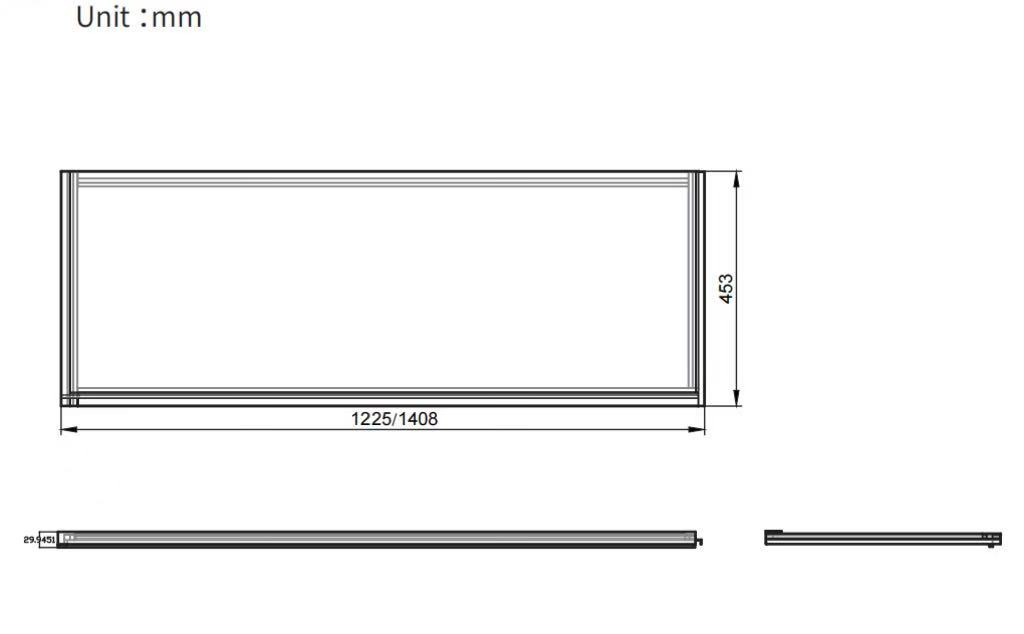

Xiho Tile (1).jpg

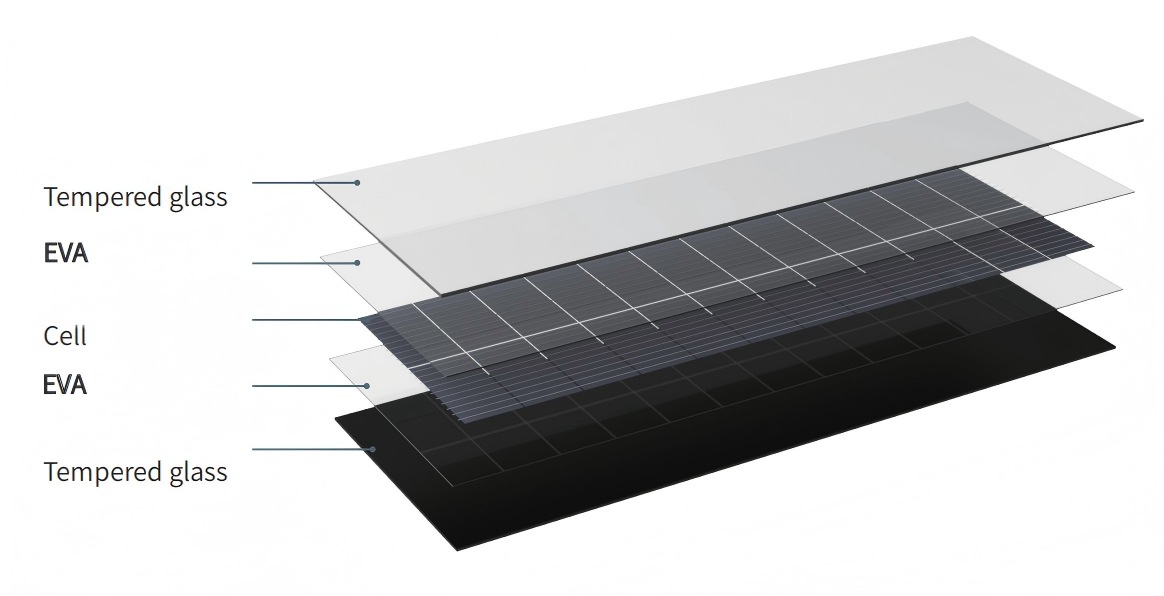

Xiho Tile (5).png

Product Features

1. Product Lightweight

Reduce roof load | Easy to install

2. Excellent Performance

Triple waterproof | Noise reduction | Ventilation and heat dissipation

3. Safe and Reliable

Fireproof Class A | Same life as the building

4. Fashion and beauty

Embedded high-efficiency photovoltaic integrated design | Three colors can be customized

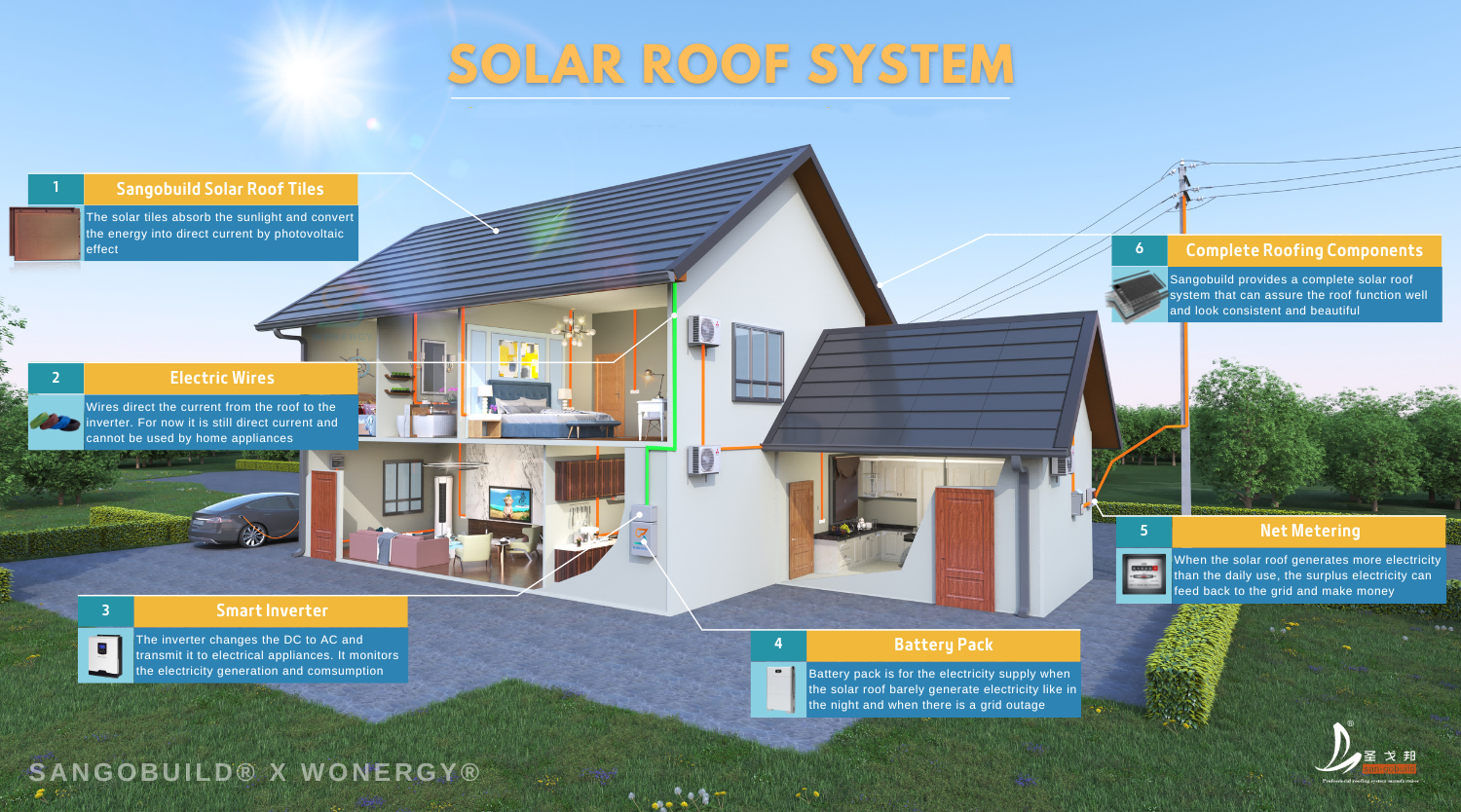

solar tiles (5)(1).png


Application

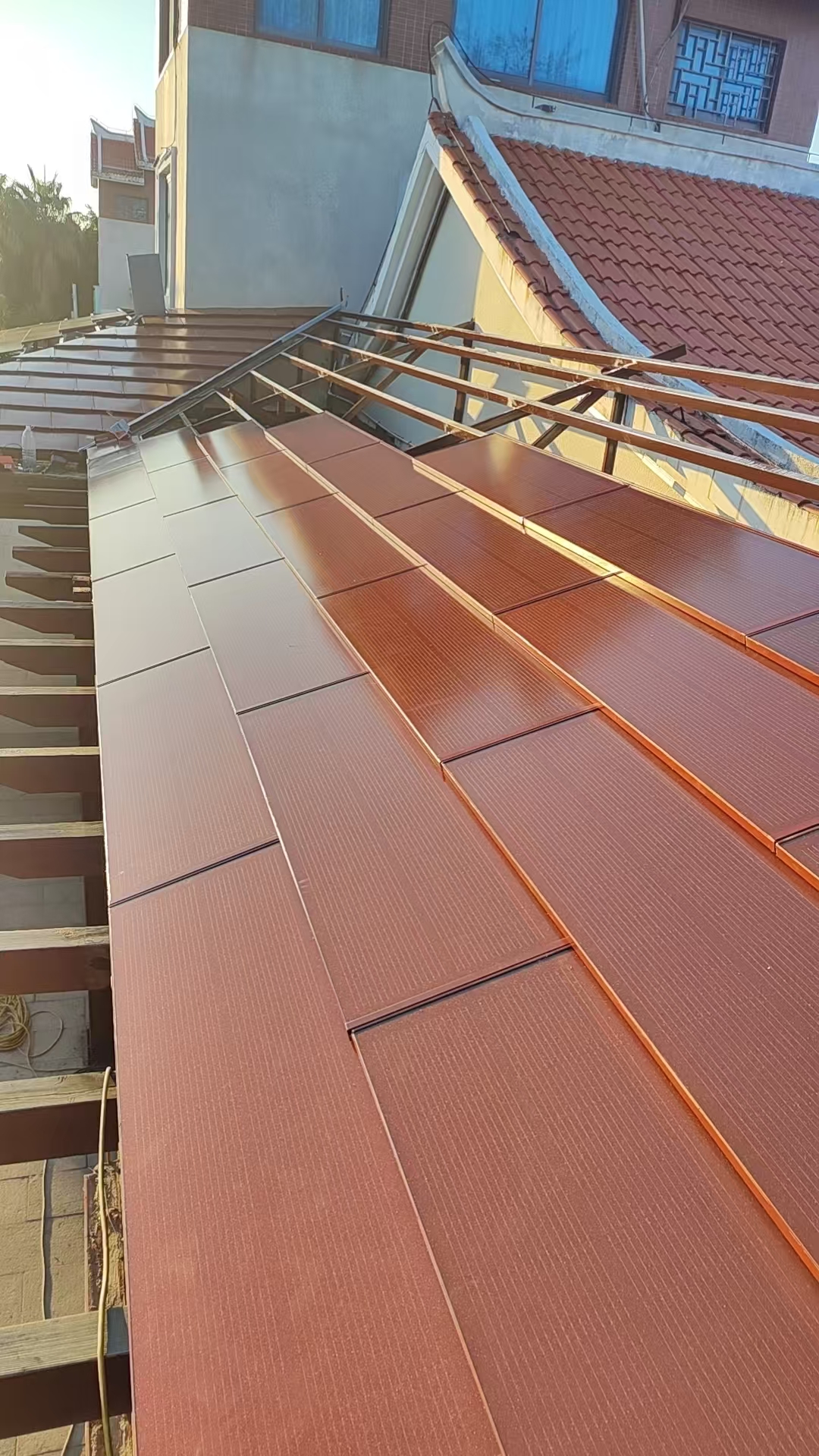

Xiho Type.jpg

Installation

None
