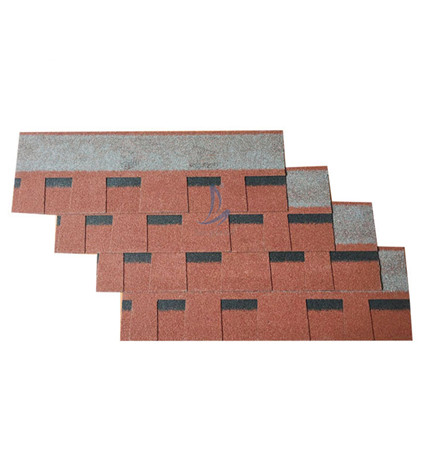

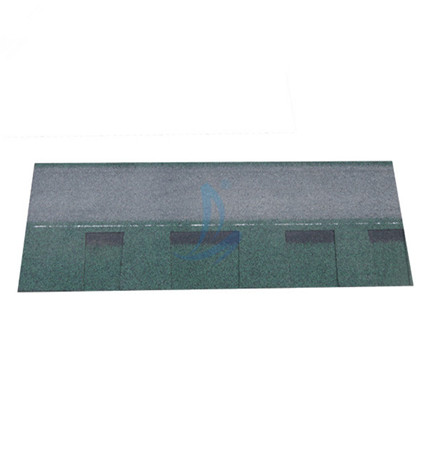

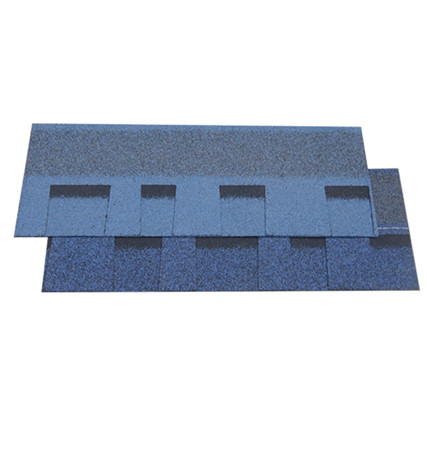

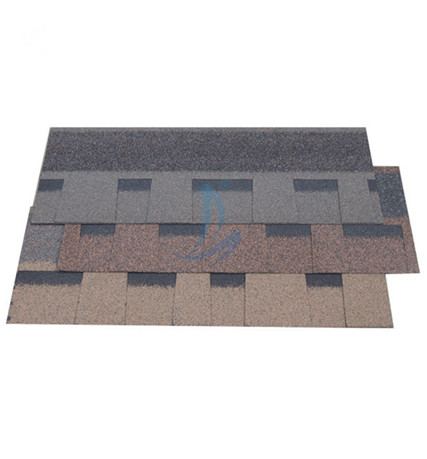

Laminated Asphalt Shingle

Length:1000mm±3mm

Width:333mm±3mm

Thickness:5.2mm±0.1mm

Pack:16pieces per bundle

Sq.m/Bundle:2.32 square meter per bundle

Weight:27kg per bundle ±1kg

Inquire Now Next Product

Product Description

Laminated Roofing Shingles

Laminated shingles are also known as "laminated architectural" or "architectural" shingles. They are a type of asphalt shingle, but are made with a heavier base mat and multiple layers of more delicate asphalt type materials. Shingle labels come in different shapes and sizes, giving them a more three-dimensional appearance.

Because laminated architectural shingles are heavier than 3-piece shingles and have the strength of multiple shingles, they can withstand stronger winds and harsher weather conditions. 3-piece shingles are more susceptible to winds and can sometimes even be torn off in stormy weather.

Key Benefits

LAMINATED SHINGLE

- Constructed with multiple layers of asphalt, giving them a thicker, more dimensional appearance.

- Lifespan of 30 years or more, longer lasting than 3-tab.

- A wide variety of colors and styles, offering homeowners more options to match their home's architectural style.

- Superior wind resistance compared to 3-tab shingles.

- Suitable for all styles of homes/buildings.

Specification

Product Name	Laminated Asphalt Shingle
Material	Natural Stone Granules+95g/m2 Fiberglass+Asphalt
Color	Black, Red, Blue, Green, Customized
Length	1000mm(±3.00mm)
Width	333mm(±3.00mm)
Thickness	5.20mm(±0.1mm)
Weight	27kgs/bundle±1kg
Temperature Range	-45℃-90℃
Tensile Strength(Longitudinal)(N/50mm)	>=530
Tensile Strength(Transversal)(N/50mm)	>=550
Heat Resistance	No flow, slide, drippage and bubble(90°C)
Flexibility	No crack being bent for 10°C
Nail Resistance	78N
Resist To Tearing	>100N
Weather Exposure	145mm
Wind Resistance	130km/h
Warranty	30 years
Certificate	ISO9001
Used	Residential, Commercial construction roof

Installation

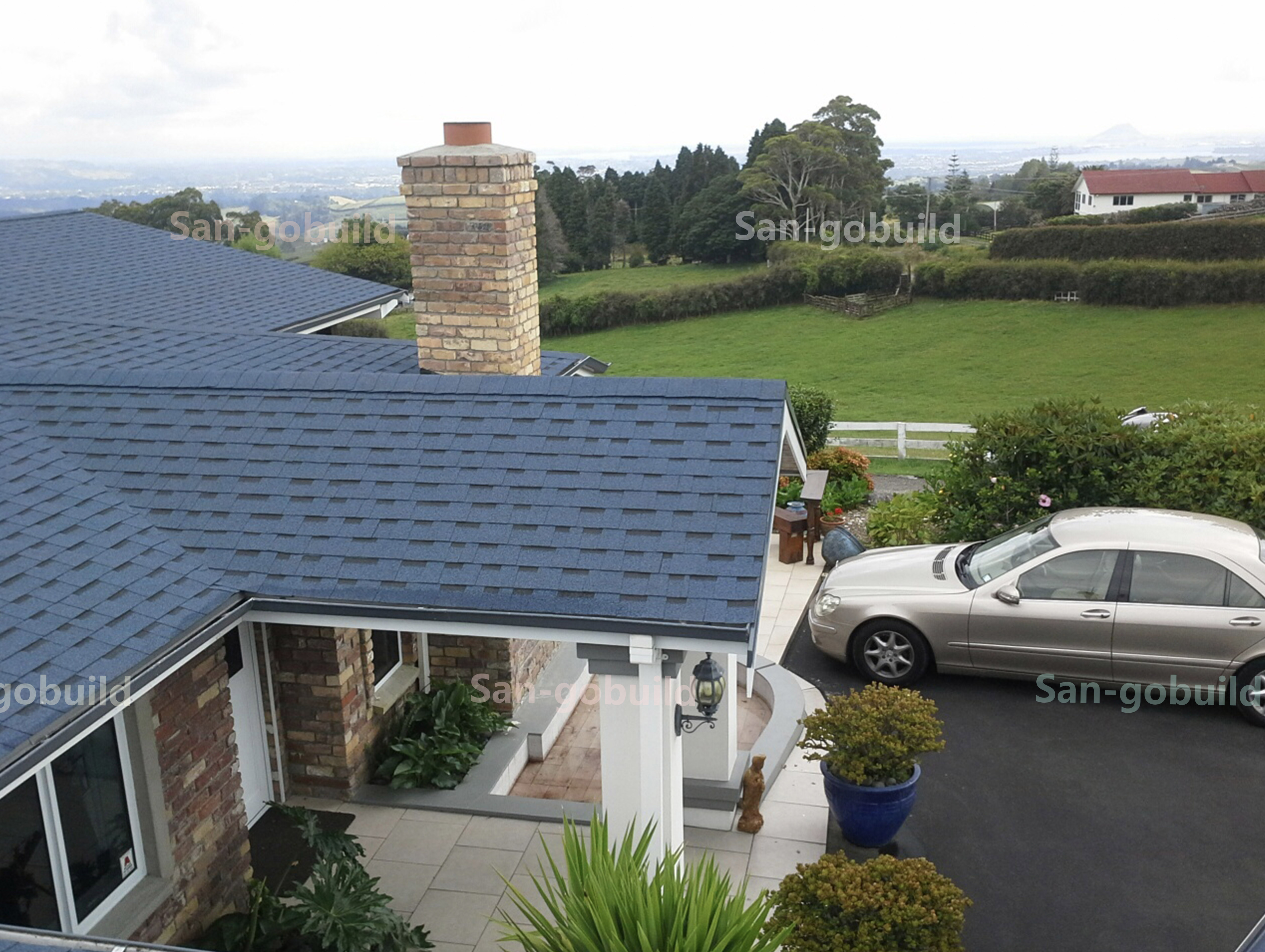

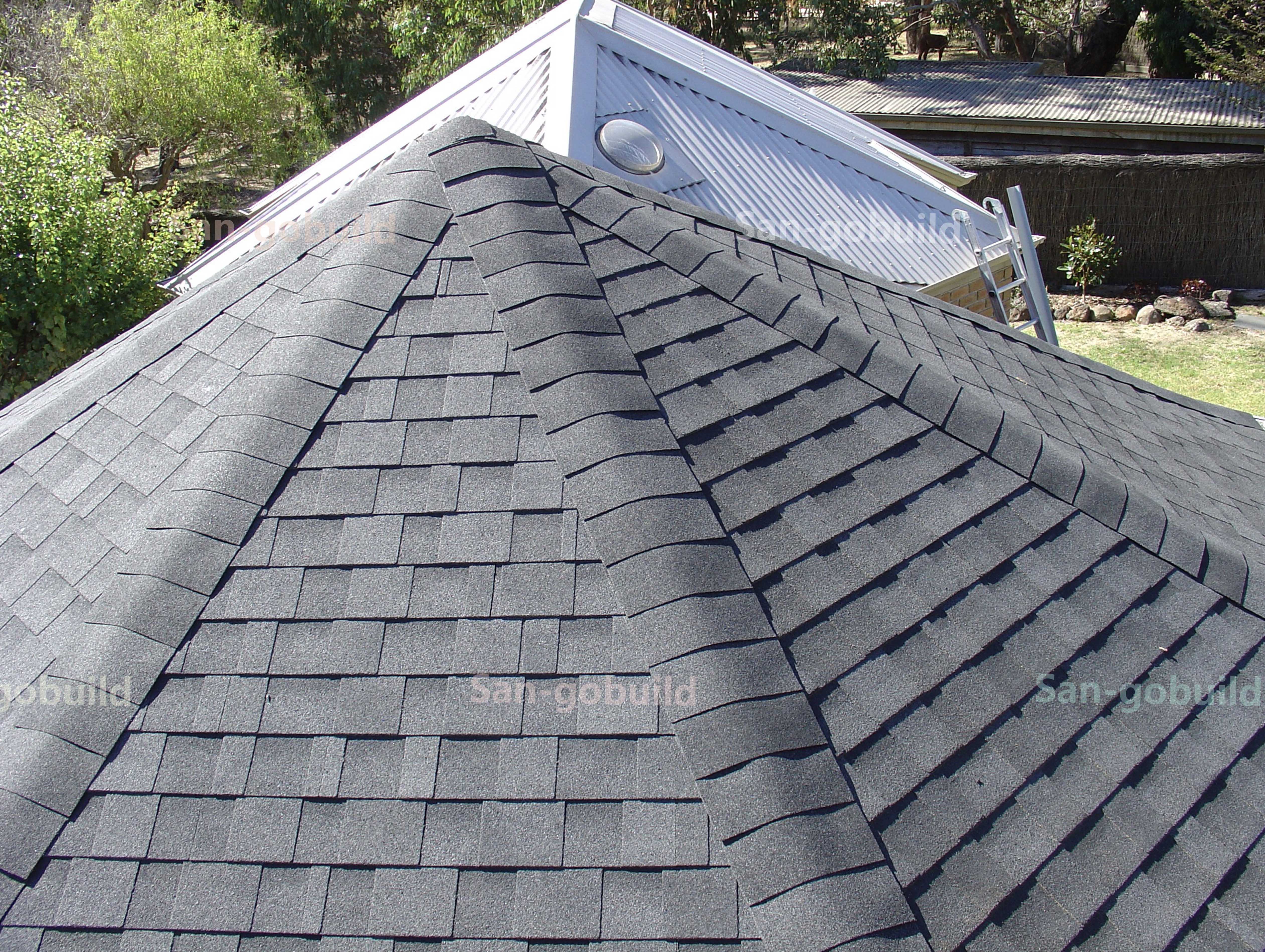

Application

Laminated Asphalt Shingle

Installation
