Home > Products > Solar Roof Tile

Heliu Type

Size: 1340*420mm

Effective Size: 1260*370mm

Power Output: 80w (Black)

Weight: 6.5 kg/pc

Glass (material/thickness): low iron tempered glass/3.2mm+backplane

Battery Size: 166*83mm (2*13)

Junction box: ≥ IP67

Cable type: 900mm / 4mm²

Warranty: more than 30 years

Product Description

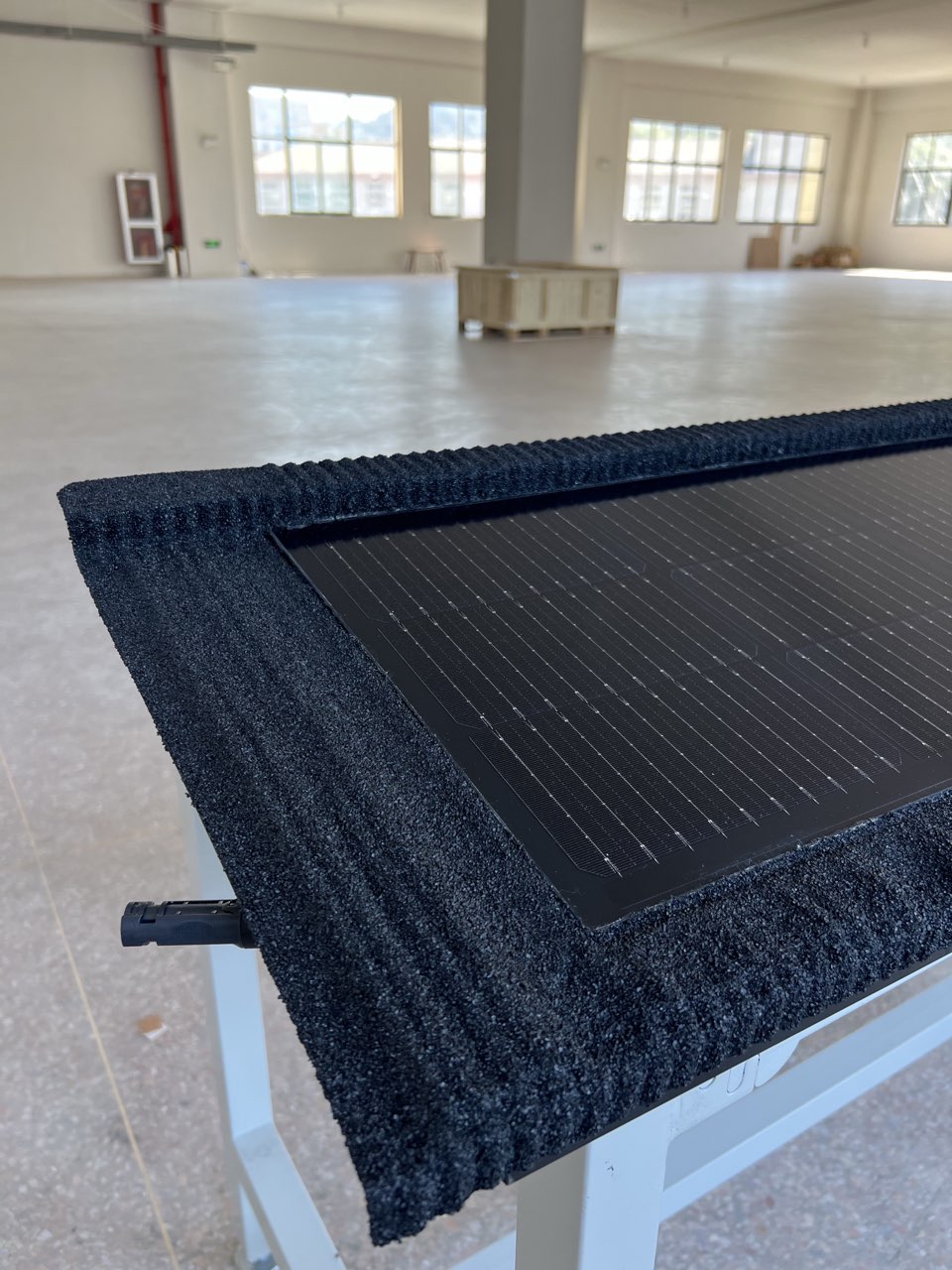

Heliu Type Solar Roof Tiles are an integrated solar roofing system that combines cutting-edge photovoltaic technology with premium-grade roofing materials. Designed to replace conventional tiles, Heliu tiles generate solar electricity while maintaining the structure and appearance of a traditional roof. They are engineered for energy efficiency, weather resistance, and seamless integration into both new builds and reroofing projects.

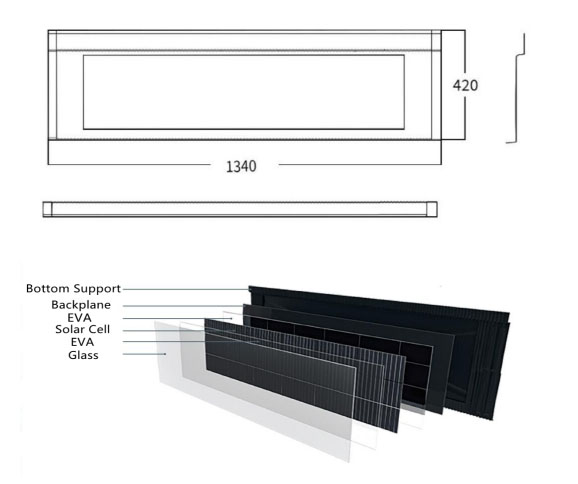

网页海报2_画板 1(1).jpg

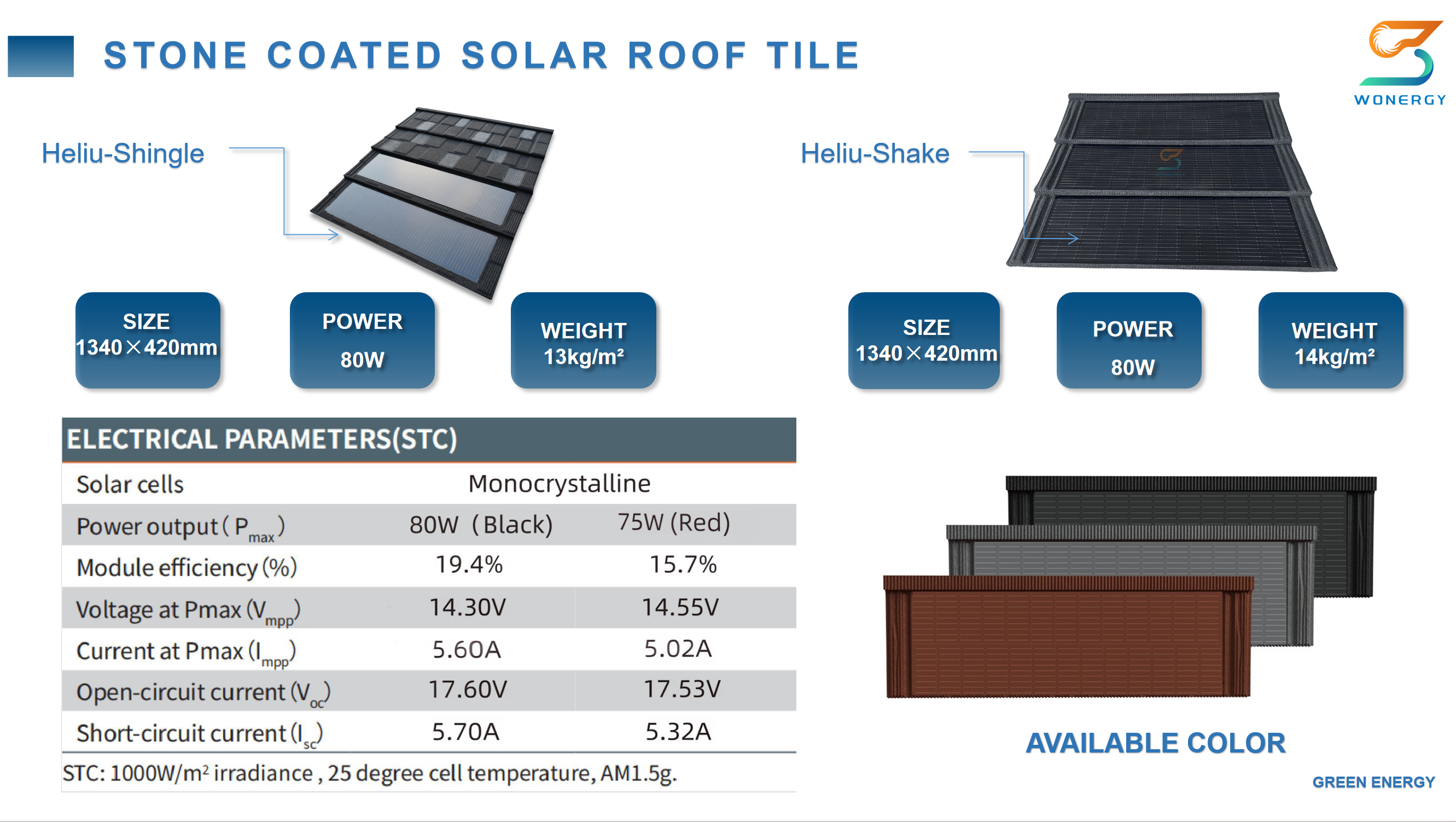

MODEL
Stone Coated Solar Roof Tile
SIZE
1340*420mm
Weight
6.5kg
GLASS(Materials/Thickness)
Low-iron tempered glass/3.2mm+backplane
Battery Size
166*83mm (2*13)
Junction Box
≥IP67
Cable Type
900mm / 4mm²
Cable Joiner
MC4
Lifespan
>30 years
Power output
80W
Temperature Range
-40°C to +85°C
Fire Rating
ClassA


Heliu Type



Product Features


1. Product Lightweight

Reduce roof load | Easy to install

2. Excellent Performance

Triple waterproof | Noise reduction | Ventilation and heat dissipation

3. Safe and Reliable

Fireproof Class A | Same life as the building

4. Fashion and beauty

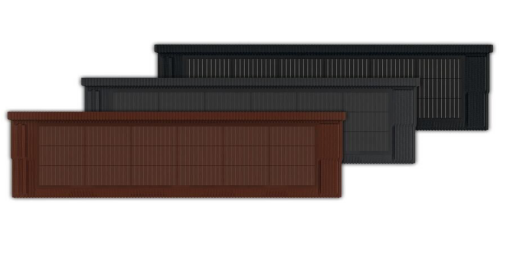

Embedded high-efficiency photovoltaic integrated design | Three colors can be customized

5. Easy installation

Standardized modular unit installation, saving time by more than 50%.


Problems Heliu Type Solves

1. Eliminates the Need for Separate Solar Panels

With solar generation built directly into each tile, Heliu Type removes the need for bulky surface-mounted panels, streamlining your roof's appearance and function.

2. Reduces Long-Term Energy Costs

Heliu tiles convert sunlight into electricity, significantly cutting down electricity bills and protecting homeowners from rising utility prices.

3. Addresses Roof Aesthetics Concerns

Many homeowners reject traditional solar due to its visual impact. Heliu tiles offer a sleek, modern look that blends with most architectural styles.

4. Simplifies Roofing & Solar Planning

Installing both the roof and solar system at once avoids the need to coordinate multiple contractors or retrofit later, reducing project timelines and costs.


Safety Features

1. Fire-Resistant Materials

Heliu Type tiles are made with flame-retardant materials and tested to meet or exceed Class A fire rating standards for roofing systems.

2. Waterproof Sealing

Tiles interlock tightly to form a water-resistant barrier, preventing leaks and ensuring full protection from rain and snow.

3. Wind & Impact Tested

Built to withstand high winds, hail, and debris impact, Heliu tiles are ideal for homes in hurricane or storm-prone regions.

4. Electrical Safety

Equipped with advanced circuitry for overvoltage, short-circuit, and arc-fault protection, ensuring safe energy transfer and reducing fire risks.



Your Roof Top & Electricity System

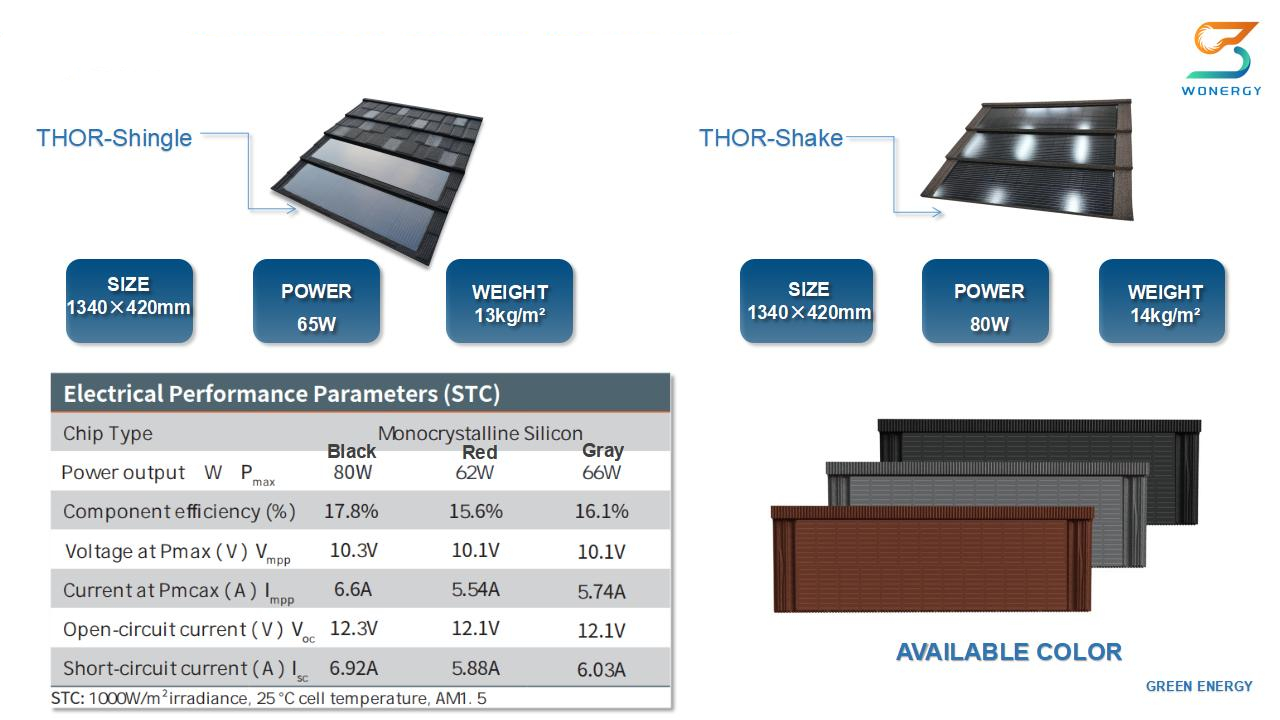

solar roof tiles (2).png

Thor Type

Heliu Type


Application

Thor TypeThor TypeThor TypeThor Type

solar roof tile.jpg

Installation
