Home > Products > Solar Roof Tile

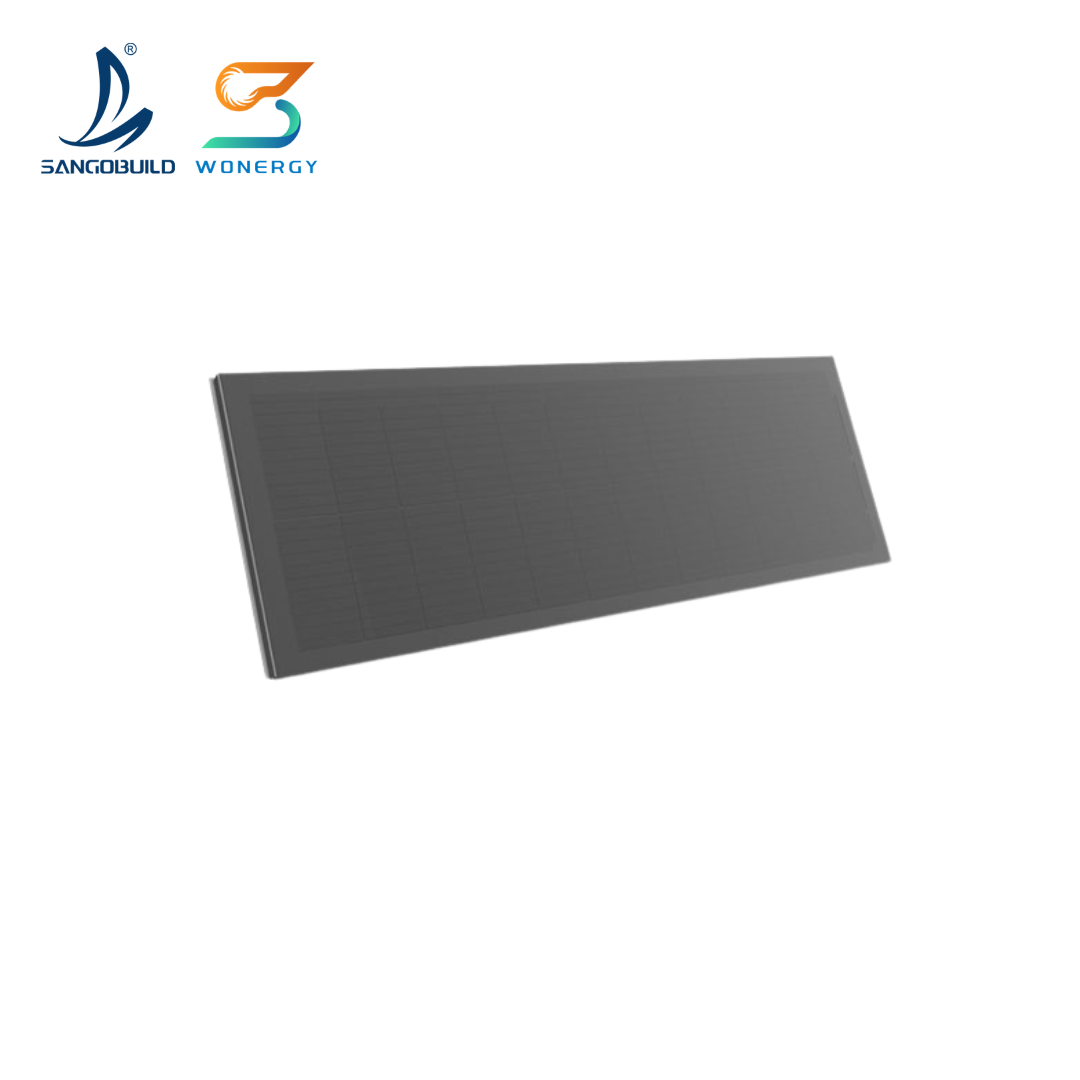

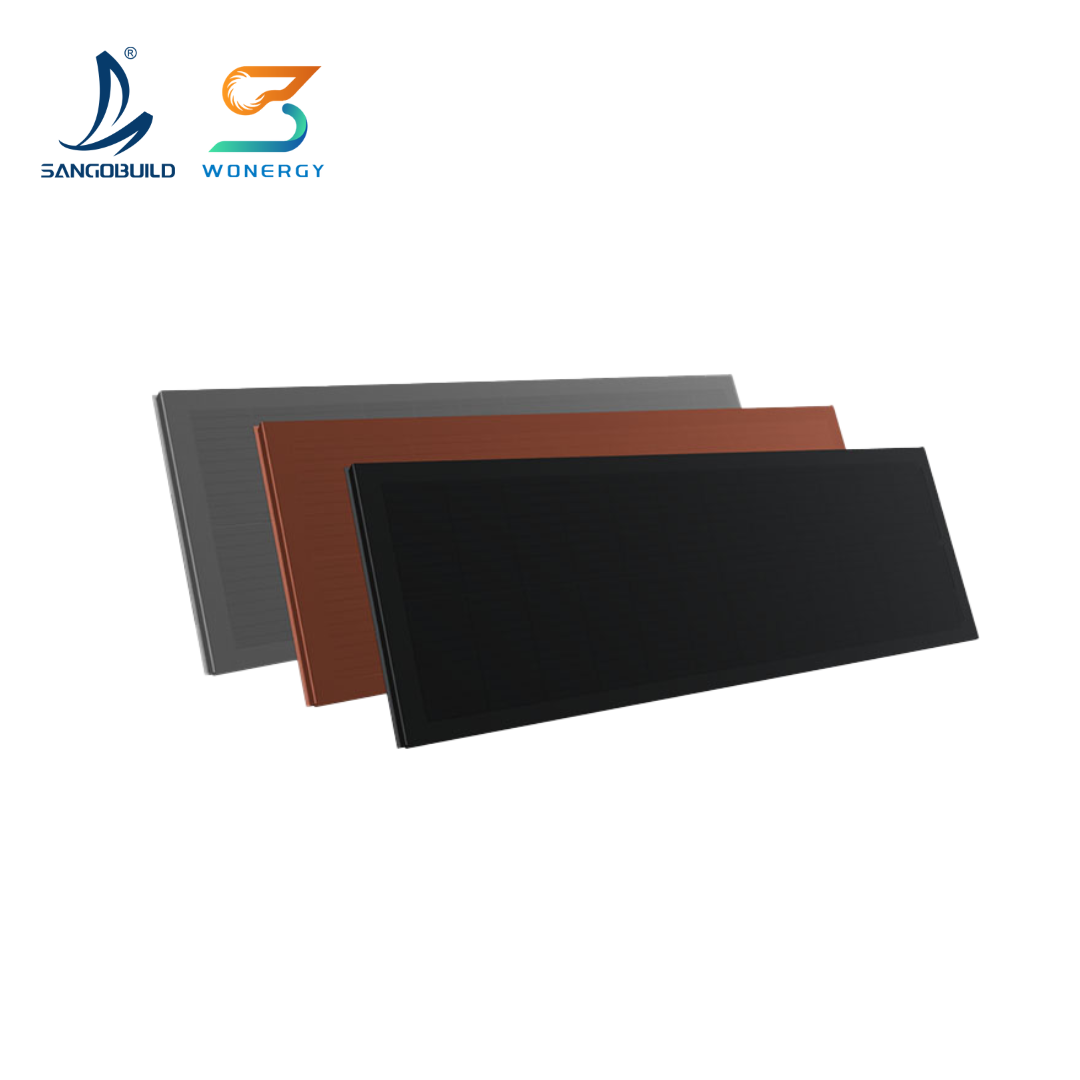

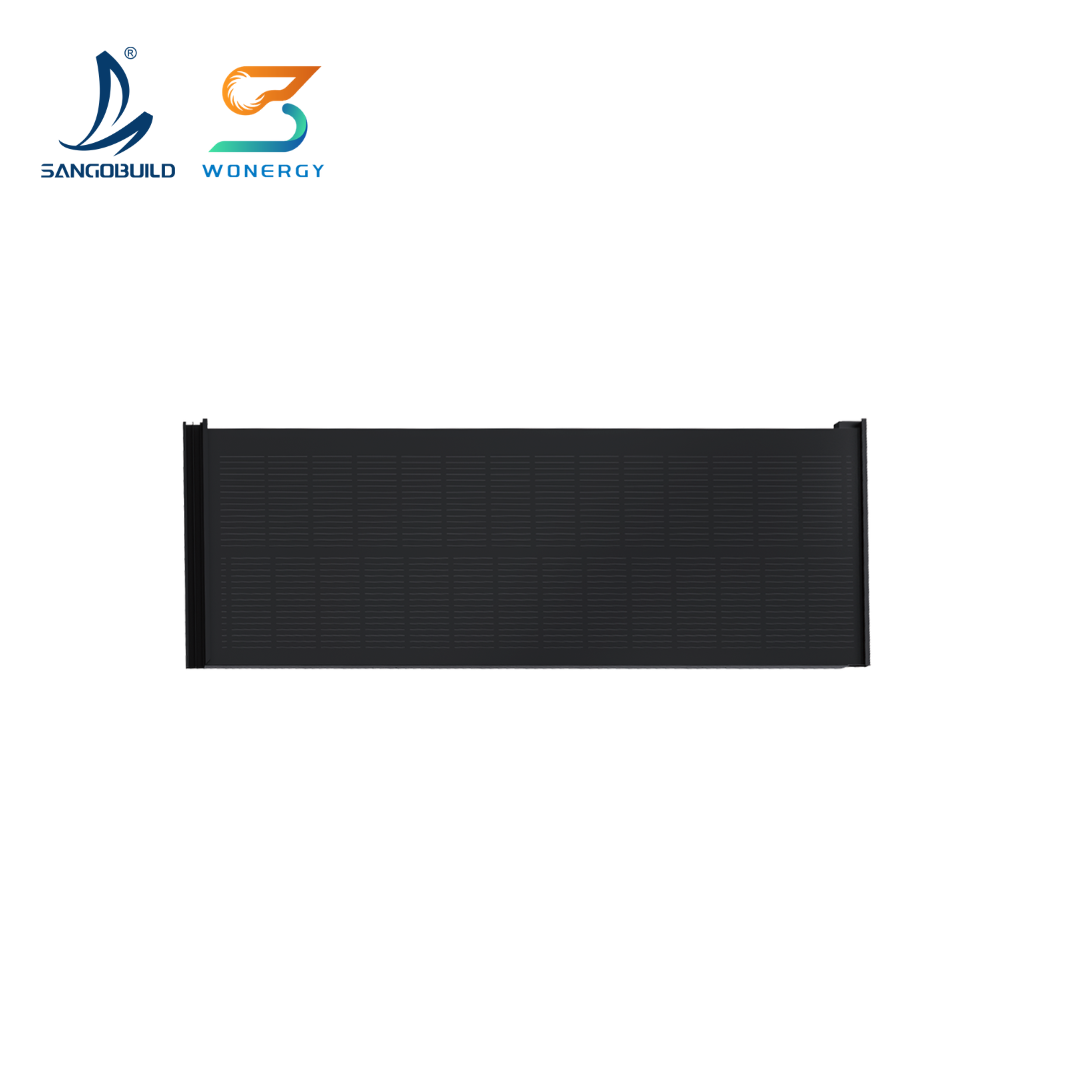

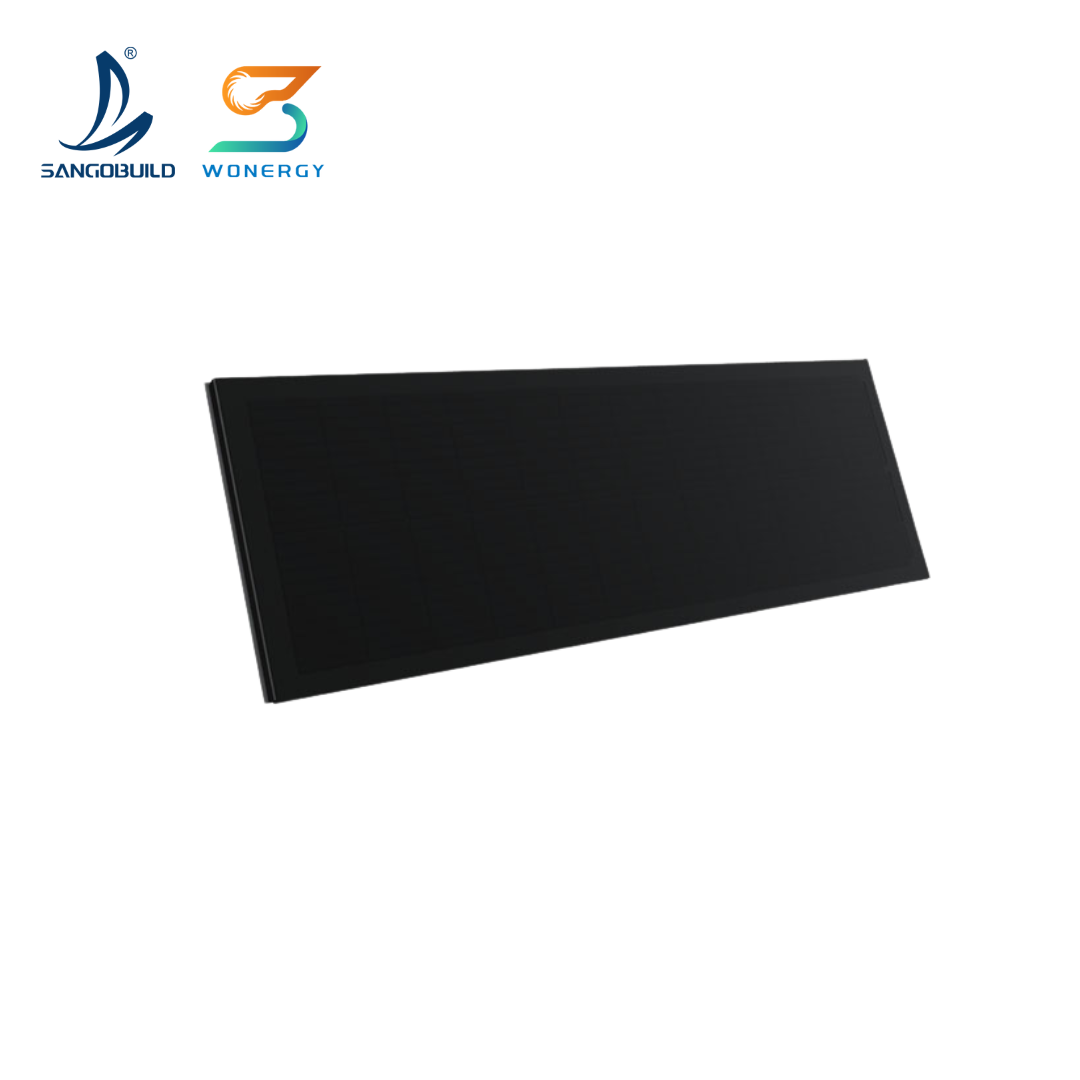

Xiho Tile

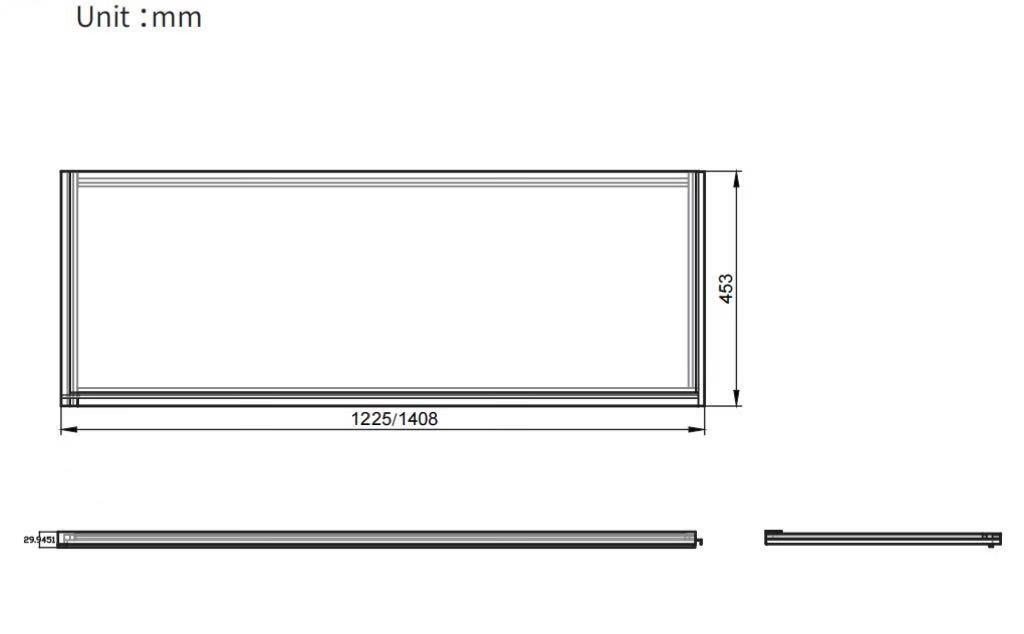

Size: 1225*453mm

Effective Size: 1215*400mm

Power Output: 100W (Black)

Weight: 8.5 kg/pc

Glass (material/thickness): low iron tempered glass/3.2mm/2mm

Battery Size: 182*91mm (2*14)

Junction box: ≥ IP67

Cable type: 900mm / 4mm²

Warranty: more than 30 years


Product Description

XIHO Solar Roof Tiles – Aesthetic BIPV That Powers Your Building

XIHO is not just a solar panel disguised as a tile – it is a true building‑integrated photovoltaic (BIPV) solution. Designed to replace conventional clay or concrete roof tiles, XIHO seamlessly combines the timeless rhythm of traditional roofing with advanced monocrystalline solar technology.

From "panel" to "tile" – this is a material upgrade, not just a name change. XIHO delivers higher power density, lower roof load, and a visually harmonious appearance that meets the demands of luxury villas, cultural tourism projects, and heritage‑sensitive buildings.


Our Strengths:

  • Certified under ISO 9001 and CE standards

  • Full in-house production: from tile forming to solar integration

  • Strong R&D capabilities for new roofing and solar technologies

  • Exporting to over 80 countries, with successful projects across Europe, the Middle East, Africa, and Southeast Asia

  • Robust OEM/ODM customization for global developers and EPC contractors

  • Dedicated team for technical guidance, logistics, and after-sales service


Sol Type


Solar Roof Tiles Sol Type Manufacturer

MODEL
Xiho Tile
SIZE
1225*453mm
Weight8.5kg
GLASS(Materials/Thickness)Low-iron tempered glass/3.2mm/2mm
Battery Size182*91mm (2*14)
Junction Box≥IP67
Cable Type900mm / 4mm²
Cable JoinerMC4
Lifespan>30 years
Power output100W
Temperature Range-40°C to +85°C
Fire RatingClassA



Product Highlights:

1. Higher Efficiency, More Power

200W/m² power density – generates 25–40% more electricity than conventional solar panels on the same roof area.

Monocrystalline silicon cells deliver 19.4% module efficiency.

Peak power options: 100W (standard) / 105W (large size) per tile.


2. Real Building Protection

Unlike ordinary PV panels that only generate electricity, XIHO tiles fully participate in building envelope functions – waterproofing, wind resistance, and thermal protection. Your roof stays a roof, not an add‑on structure.


3. Built to Last

  •  >30 years service life – outlasts many conventional roofing materials.

  • No bracket corrosion or aging worries – the tile itself is the weather barrier.


4. Excellent Low‑Light & Partial Shading Performance

Advanced cell layout minimizes power loss from shadows or debris, ensuring stable daily output.


Product Advantages

1. High Efficiency & Energy Saving

XIHO's low‑profile design reduces installation height while maximizing daylighting for your building interior. Every tile works hard to cut your electricity bills.

2. Eco‑Friendly & Healthy

Made from non‑toxic, recyclable materials. By generating on‑site renewable energy, XIHO helps reduce your building's carbon footprint.

3. Beautiful & Harmonious

The tile follows traditional roof rhythms – staggered, layered, and visually warm. Available in dark natural tones that blend with any architectural style, from Chinese courtyard villas to modern eco‑resorts.


Application

  • Luxury residential & boutique hotels – hidden power, visible elegance.

  • Coastal & island projects – corrosion‑resistant materials withstand salt spray and high humidity.

  • Cultural tourism resorts – meet green building certifications while pleasing the eye.

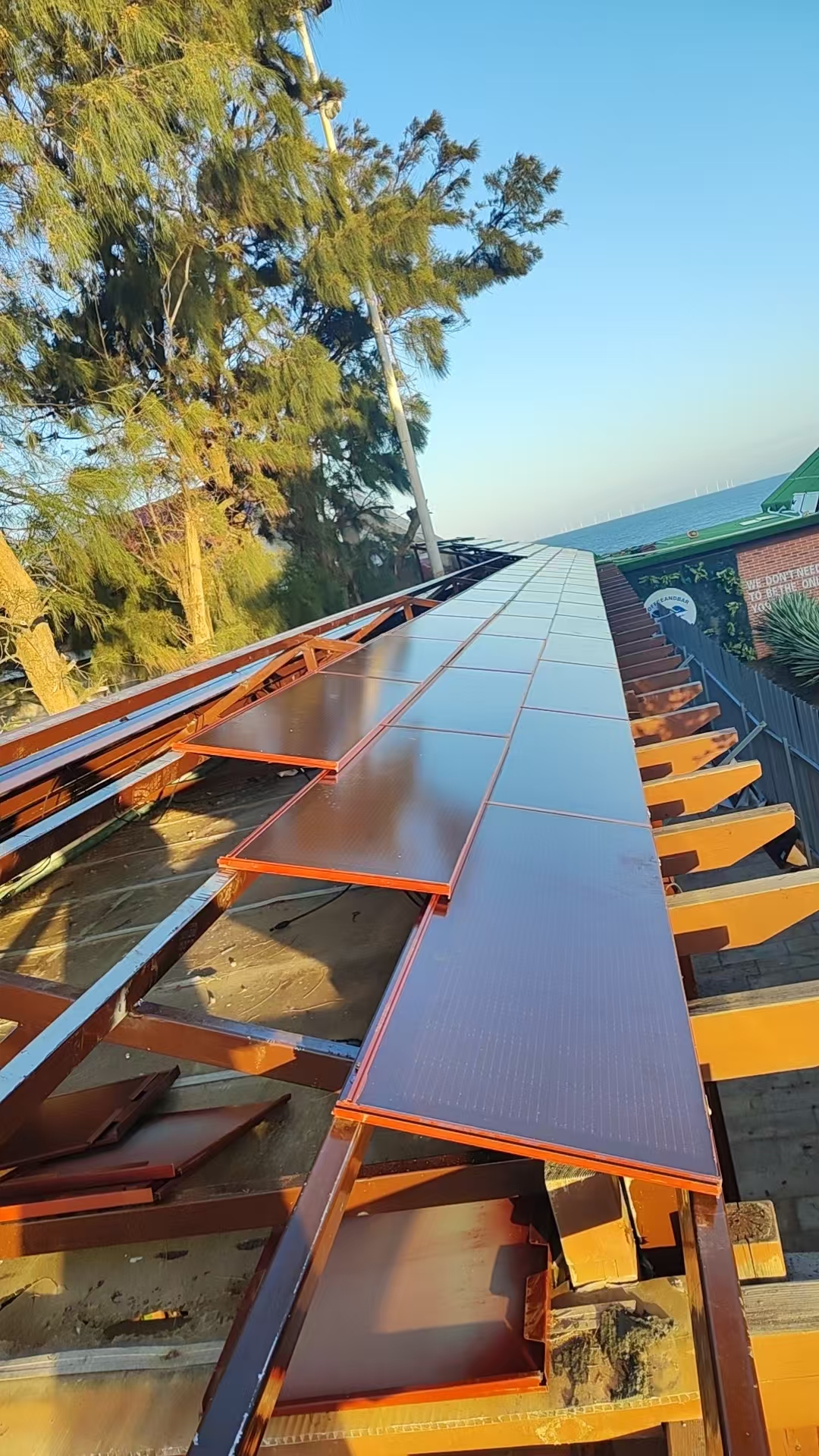

Xiho Type (2).jpg

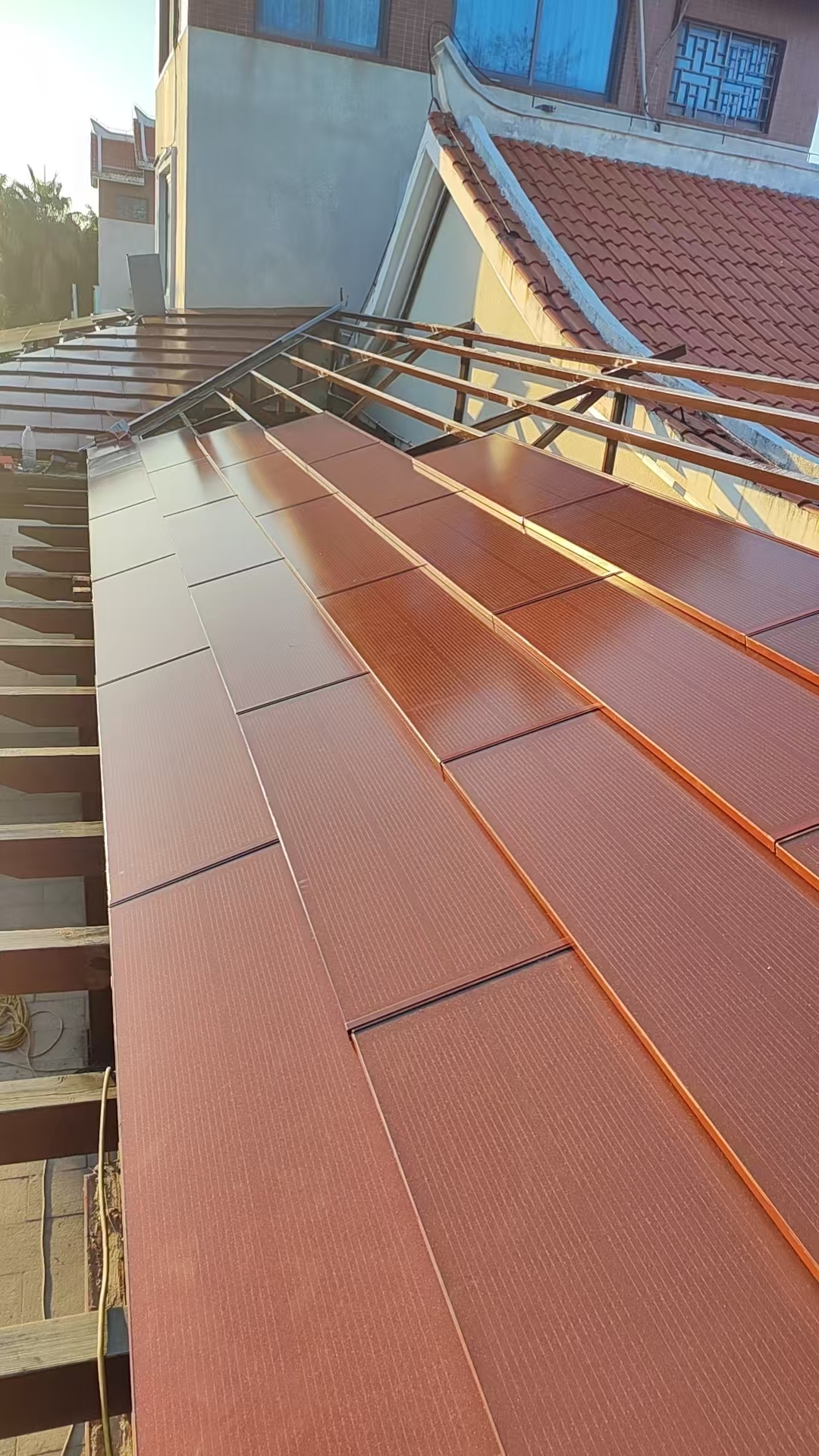

Xiho Type.jpg

Installation

None
