Sol Type

Size: 1190*390*23mm

Effective Size: 1170*365*23mm

Power Output: 80w (Black)

Weight: 6 kg/pc

Glass (material/thickness): low iron tempered glass/3.2mm+backplane

Battery Size: 166*83mm (2*12)

Junction box: ≥ IP67

Cable type: 900mm / 4mm²

Warranty: more than 30 years


Product Description

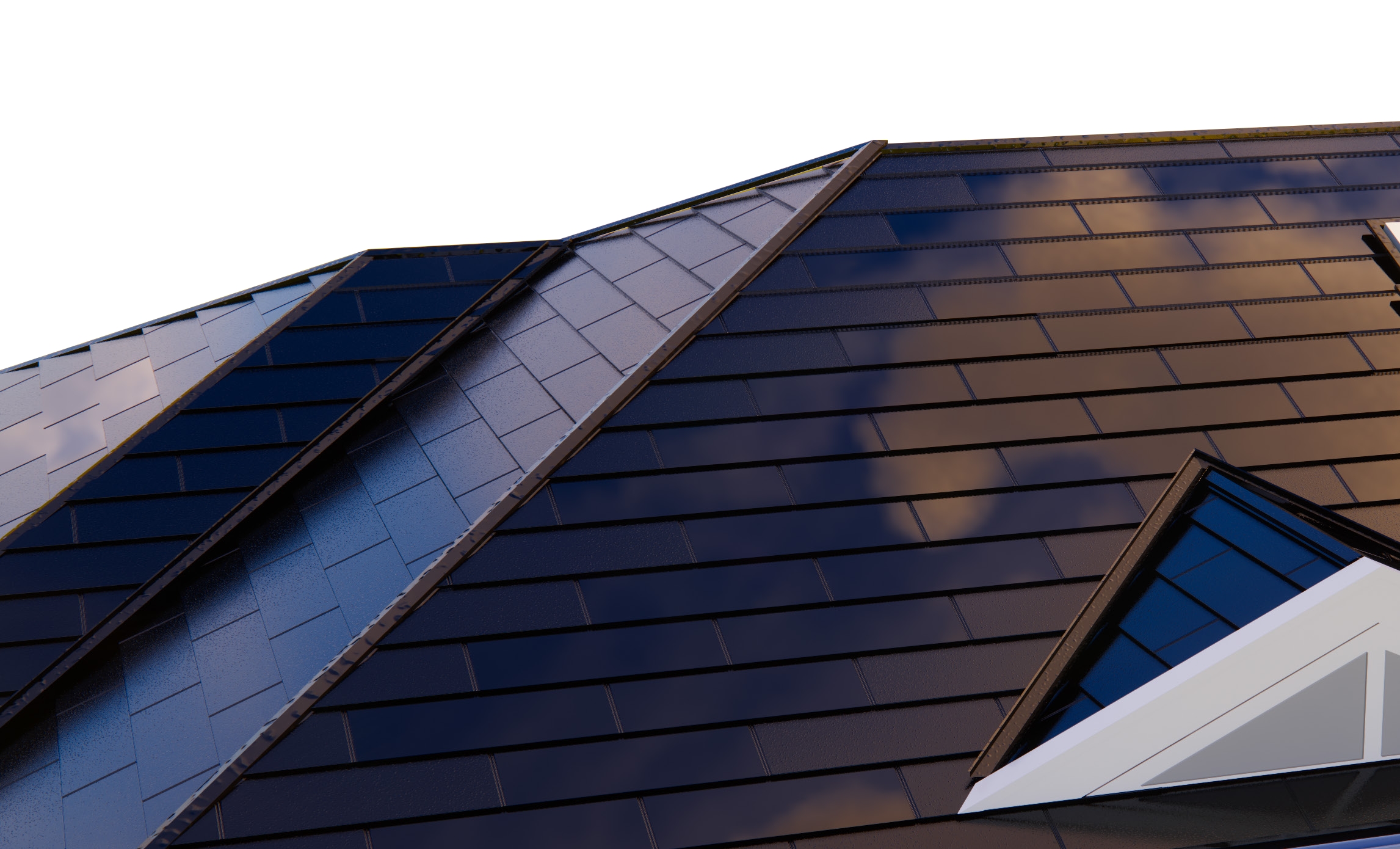

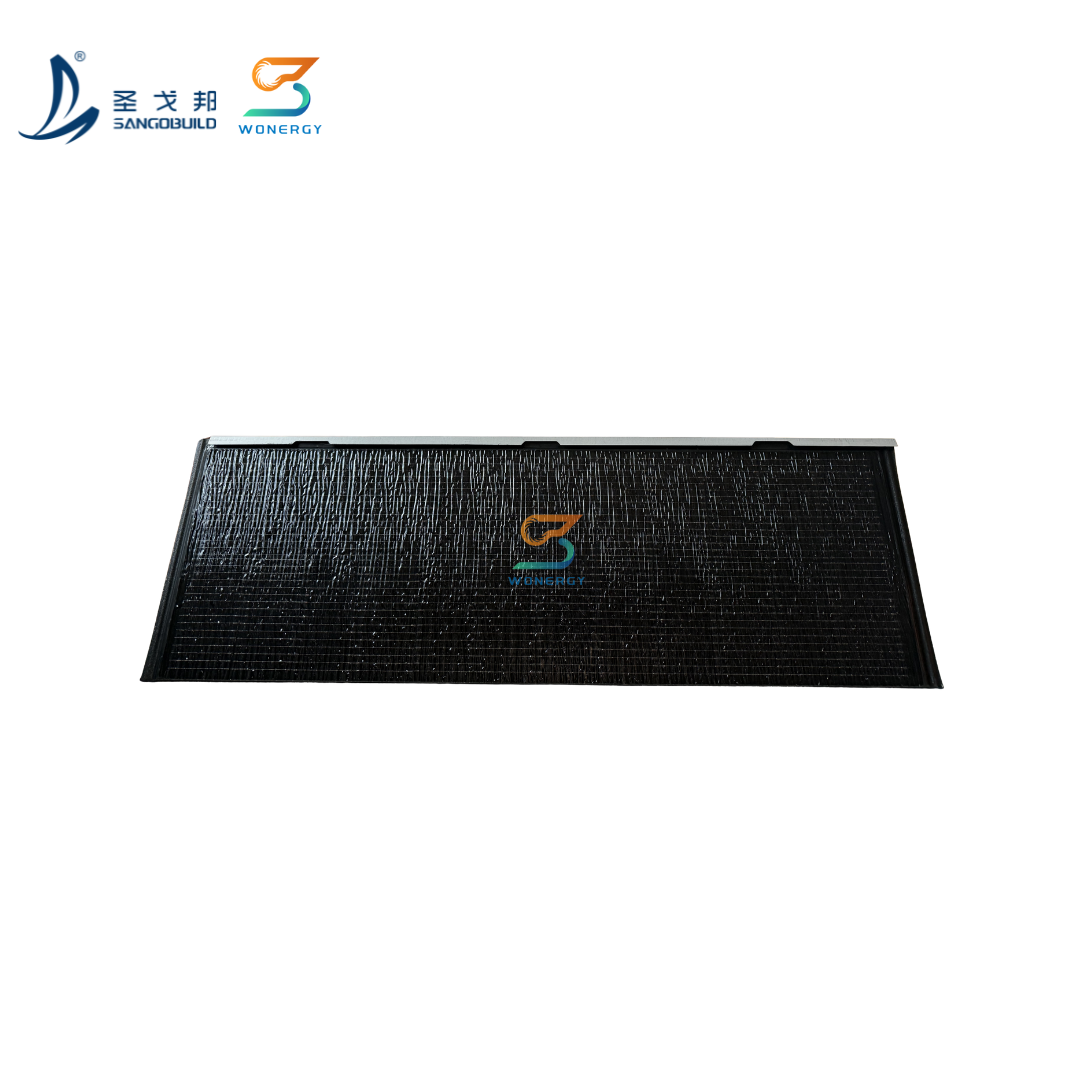

Sol Type Solar Roof Tiles are next-generation photovoltaic roofing systems that combine the function of traditional roof tiles with integrated solar energy generation. Designed for aesthetic harmony and energy efficiency, these tiles are installed directly on rooftops, replacing conventional roofing materials while simultaneously producing clean electricity from sunlight.

Unlike bolt-on solar panels, Sol Type tiles are seamlessly embedded into the structure of the roof, providing a sleek, low-profile appearance suitable for modern architectural designs.

网页海报2_画板 1(1).jpg

MODEL
Sol Tile
SIZE
1190*390*23mm
Weight
6kg
GLASS(Materials/Thickness)
Low-iron tempered glass/3.2mm+backplane
Battery Size
166*83mm (2*12)
Junction Box
≥IP67
Cable Type
900mm / 4mm²
Cable Joiner
MC4
Lifespan
>30 years
Power output
80W
Temperature Range
-40°C to +85°C
Fire Rating
ClassA


Sol Type


Product Features

1. Product Lightweight

Reduce roof load | Easy to install

2. Excellent Performance

Triple waterproof | Noise reduction | Ventilation and heat dissipation

3. Safe and Reliable

Fireproof ClassA | Same life as the building

4. Fashion and beauty

Embedded high-efficiency photovoltaic integrated design | Three colors can be customized

5. Easy installation

Standardized modular unit installation, saving time by more than 50%.


What can be solved

  1. All-in-One Roofing Solution
    Sol Type tiles serve as both a protective roofing material and a solar power source, eliminating the need for two separate systems.

  2. Aesthetic Appeal
    Designed to blend with modern and traditional roof styles, Sol Type offers a uniform, integrated look without bulky panels or mounting hardware.

  3. Durable & Weather-Resistant
    Built with high-strength tempered glass and advanced weatherproofing materials, these tiles are resistant to wind, hail, snow, and UV damage.

  4. Energy Independence
    Generate clean, renewable electricity directly from your roof, helping reduce reliance on grid power and lowering long-term energy costs.

  5. Increased Property Value
    A solar-integrated roof enhances a home’s resale value and appeal, especially in areas with high energy costs or strong green building incentives.


Your Roof Top & Electricity System

Sol Type

Thor Type

Heliu Type

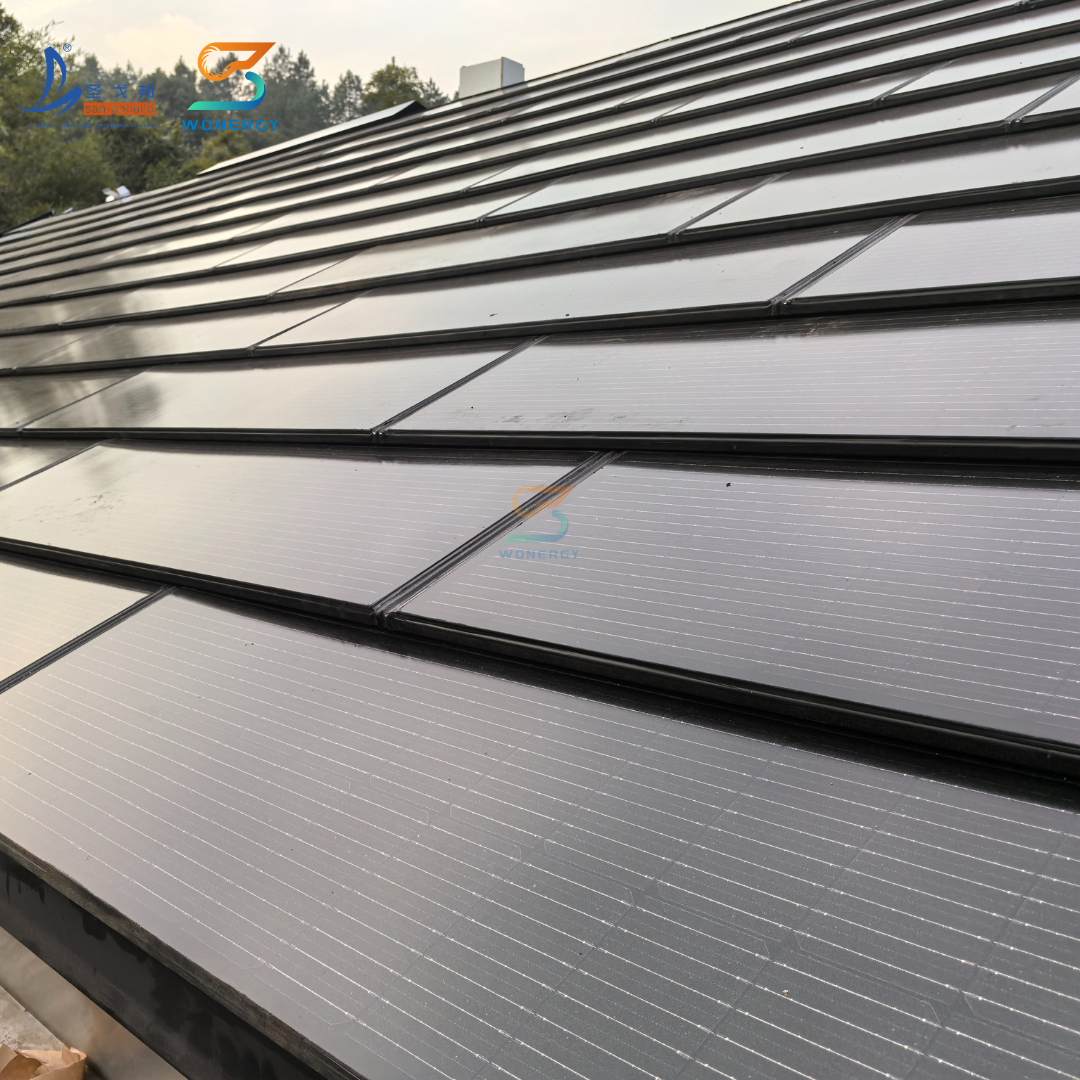

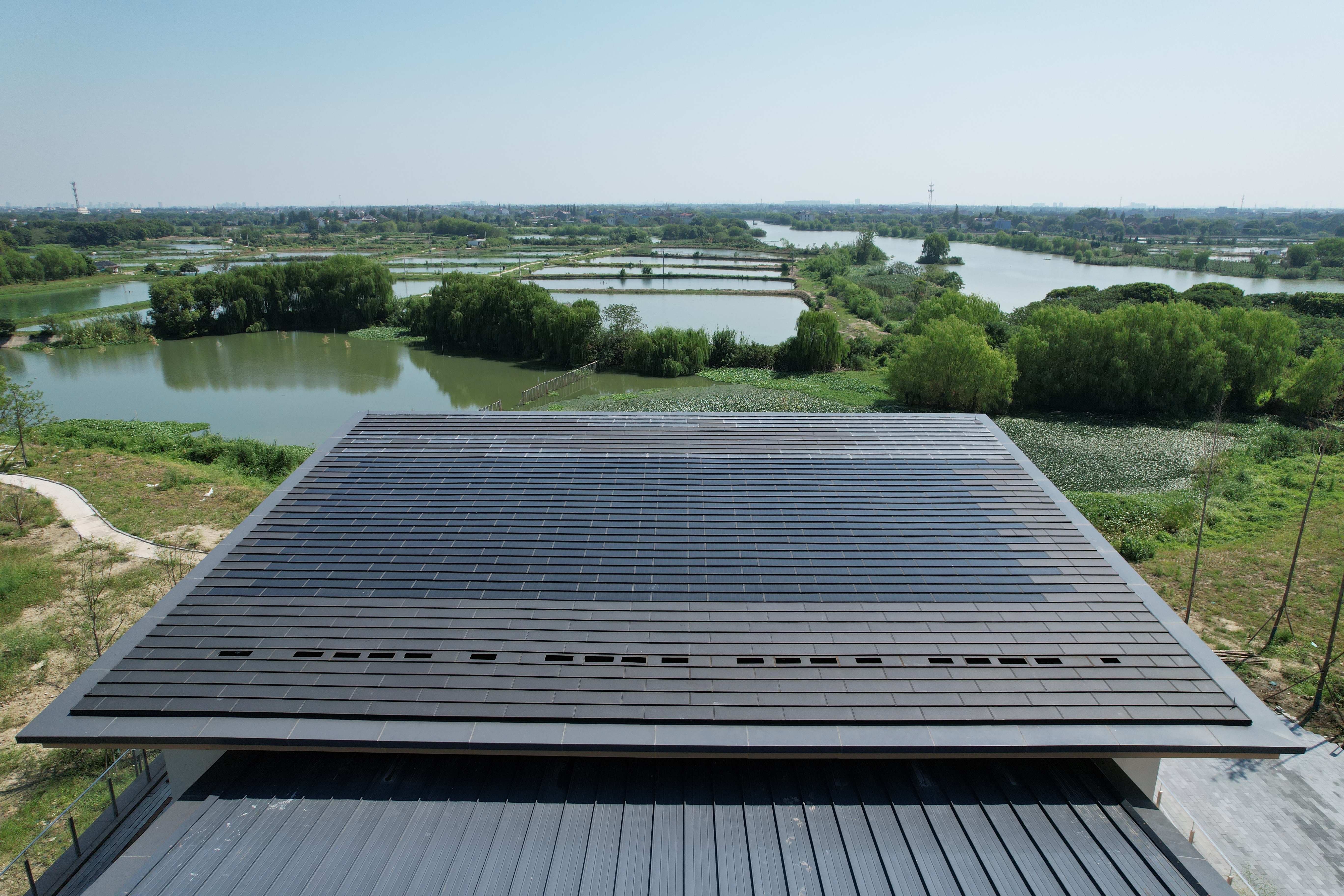

Application

solar roof tile.jpg

sol type solar roof.jpg

sol solar (2).png

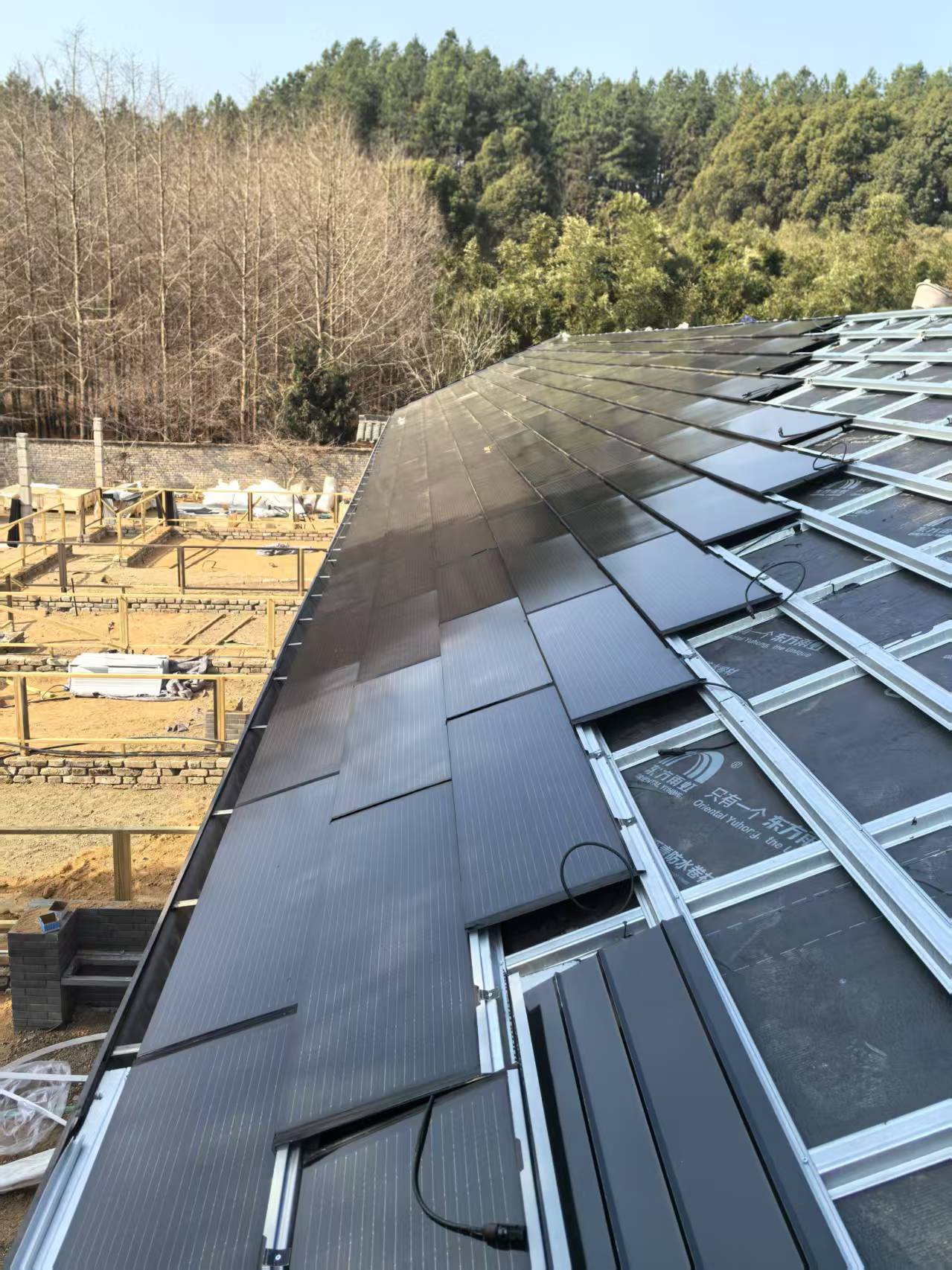

Installation
